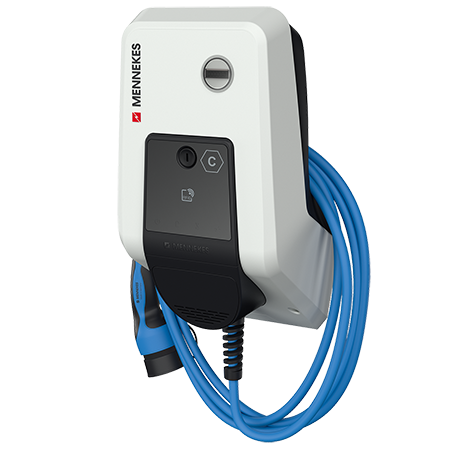

MENNEKES AMTRON® Professional+ PnC 22 C2 1367202
MENNEKES AMTRON® Professional+ PnC 22 C2 1367202
MENNEKES AMTRON® Professional+ PnC 22 C2 1367202 #1
MENNEKES AMTRON® Professional+ PnC 22 C2 1367202 #2
MENNEKES AMTRON® Professional+ PnC 22 C2 1367202 #3
MENNEKES AMTRON® Professional+ PnC 22 C2 1367202 #4
MENNEKES AMTRON® Professional+ PnC 22 C2 1367202 images3d

Please accept marketing-cookies to watch this video.

Video varieties

AMTRON® Professional+ PnC 22 C2

The newly developed AMTRON® Professional products ideally satisfy the requirements for semi-public spaces, including company or customer parking lots, for example. A compelling total package for charging infrastructure of the future: satisfying exacting requirements for security, offering ease of use, networking capacity that enables the implementation of billing and payment services that meet a given set of requirements, system monitoring, and load management are all combined in one solution. Integrating the optional “Plug & Charge” (PnC) feature adds even more convenience to the charging process.


  • Access with RFID charging card
  • Load management
  • Energy management
  • Direct backend connection
  • Backend
  • Part no.1367202
  • EAN4015394291626
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Details

General data
Plug device

Permanently connected charging cable (7.5 m)

Authorisation

Autostart (without access protection)

RFID

Backend

ISO 15118

Plug & Charge

Load management

Static load management

Dynamic load management

Connection to an external EMS via Modbus TCP and EEBus

Networking

via LAN to external energy management system

via LAN to Professional charging systems

Protocol backend communication

OCPP 1.5s

OCPP 1.6j

OCPP 1.6s

Interface backend communication

via mobile radio

via LAN

Communication with vehicle

IEC 61851-1 Mode 3

Product colour

light gray (RAL 7035)

Electrical data
Connection

1 -phase

3 -phase

Maximum charging power per charging point

22 kW

Personal protection

40 / 0,03A, 4p, type A

Line protection

C-32A, 3p+N, 10kA

Electricity meter (MID compliant)

yes (readable from outside)

Integrated power meter

yes

Mechanical data
Control elements

LED status indicator

Multi-function button

Material enclosure

AMELAN
