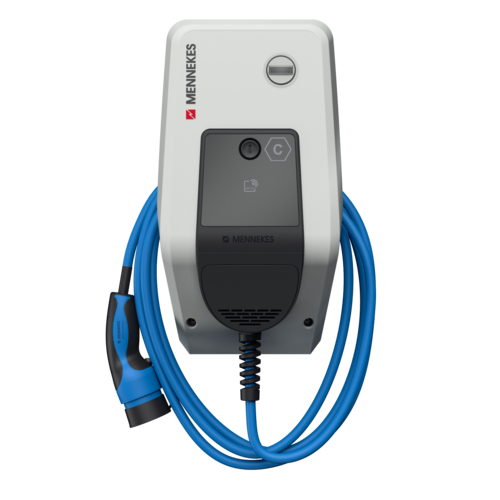

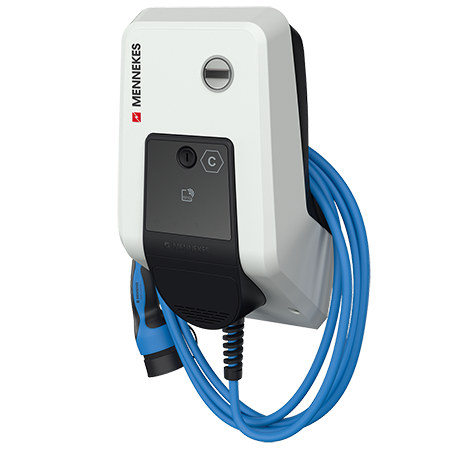

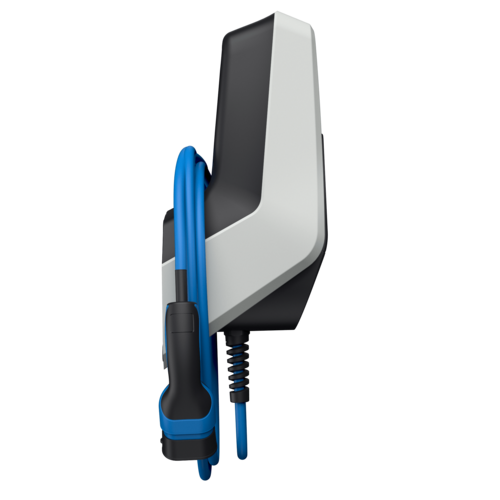

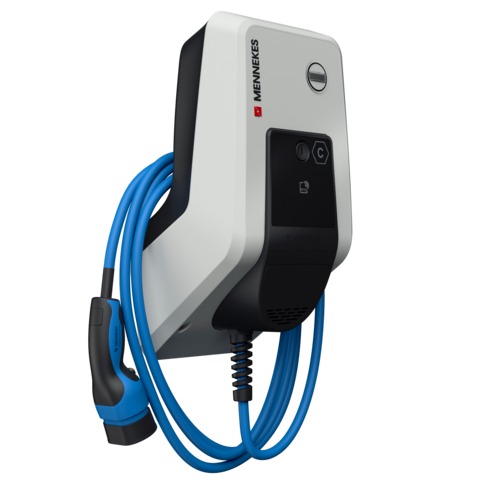

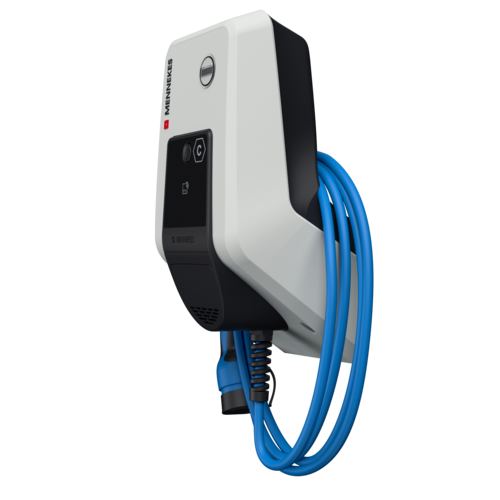

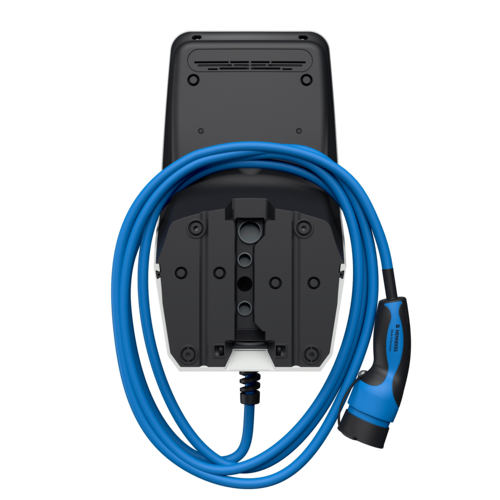

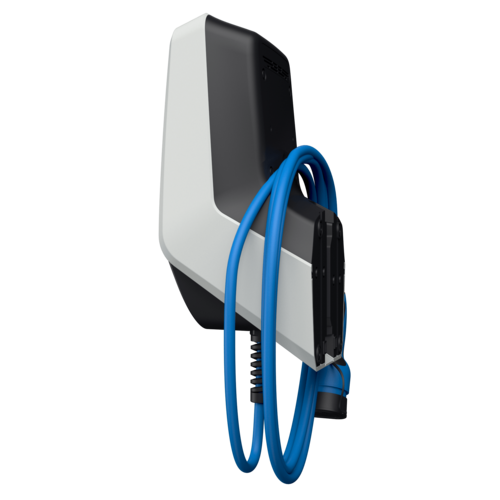

AMTRON® Professional E 7,4/22 C2
The newly developed AMTRON® Professional products ideally satisfy the requirements for semi-public spaces, including company or customer parking lots, for example. A compelling total package for charging infrastructure of the future: satisfying exacting requirements for security, offering ease of use, networking capacity that enables the implementation of billing and payment services that meet a given set of requirements, system monitoring, and load management are all combined in one solution.
- Access with RFID charging card
- Load management
- Energy management
- Backend
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Details
General data
| Plug device |
Permanently connected charging cable (7.5 m) |
|---|---|
| Authorisation |
Autostart (without access protection) RFID Backend |
| Load management |
Static load management Dynamic load management Connection to an external EMS via Modbus TCP and EEBus |
| Networking |
via LAN to external energy management system via LAN to Professional charging systems |
| Protocol backend communication |
OCPP 1.5s OCPP 1.6j OCPP 1.6s |
| Interface backend communication |
via AMEDIO charging systems via LAN |
| Communication with vehicle |
IEC 61851-1 Mode 3 |
| Product colour |
light gray (RAL 7035) |
Electrical data
| Connection |
1 -phase 3 -phase |
|---|---|
| Maximum charging power per charging point |
22 kW |
| Line protection |
C-32A, 3p+N, 10kA |
| Electricity meter (MID compliant) |
yes (readable from outside) |
| Integrated power meter |
yes |
Videos
AMTRON® Professional E 7,4/22 C2 1374202
