MENNEKES AMTRON® 4Business 730 11 C2 1347111205BK
MENNEKES AMTRON® 4Business 730 11 C2 1347111205BK
MENNEKES AMTRON® 4Business 730 11 C2 1347111205BK #1
MENNEKES AMTRON® 4Business 730 11 C2 1347111205BK images3d

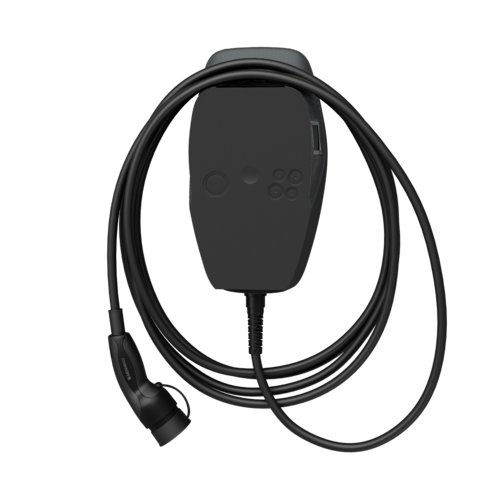

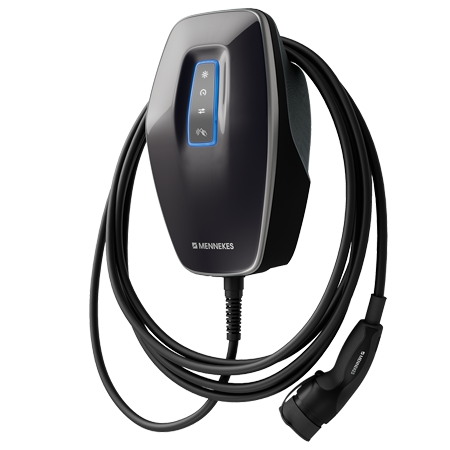

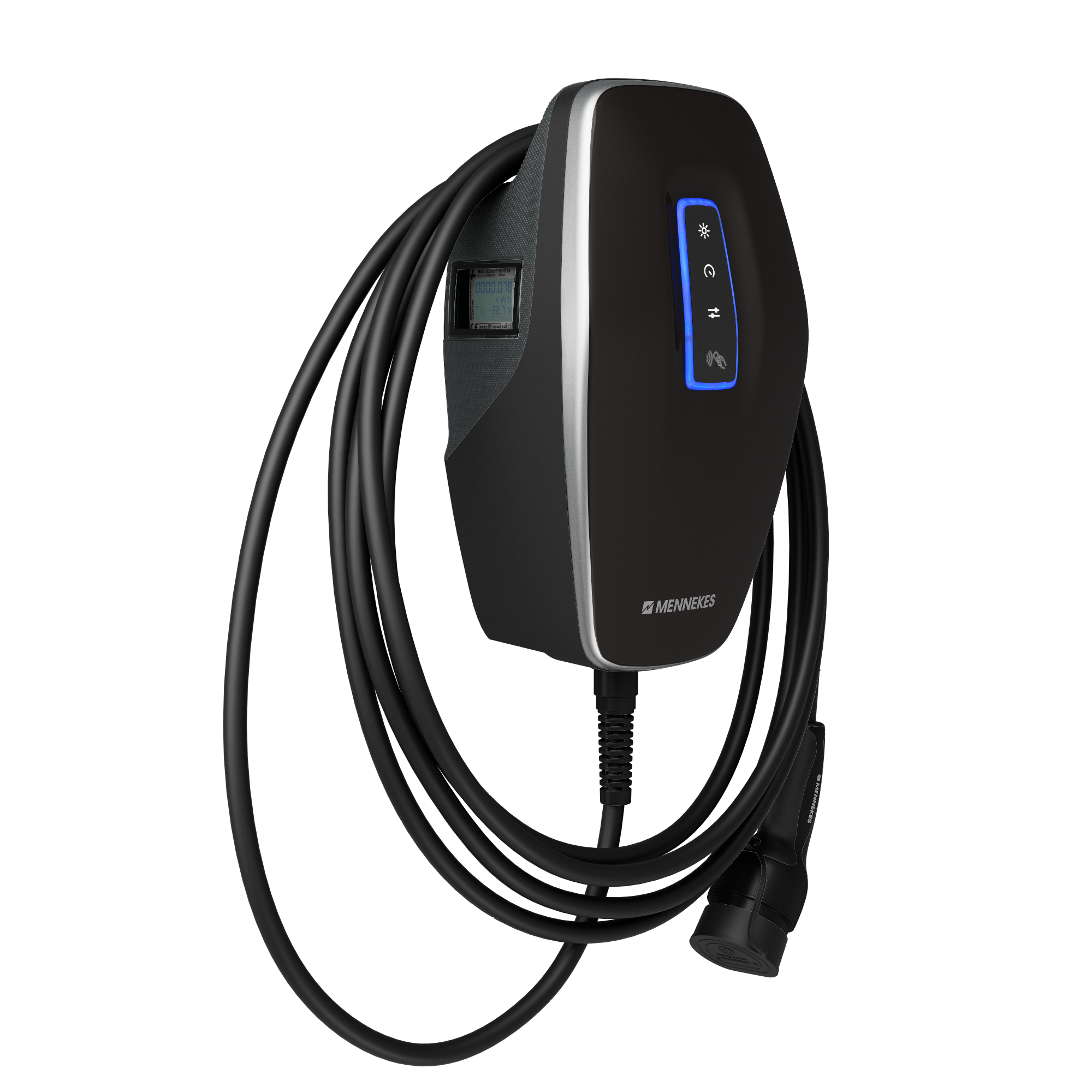

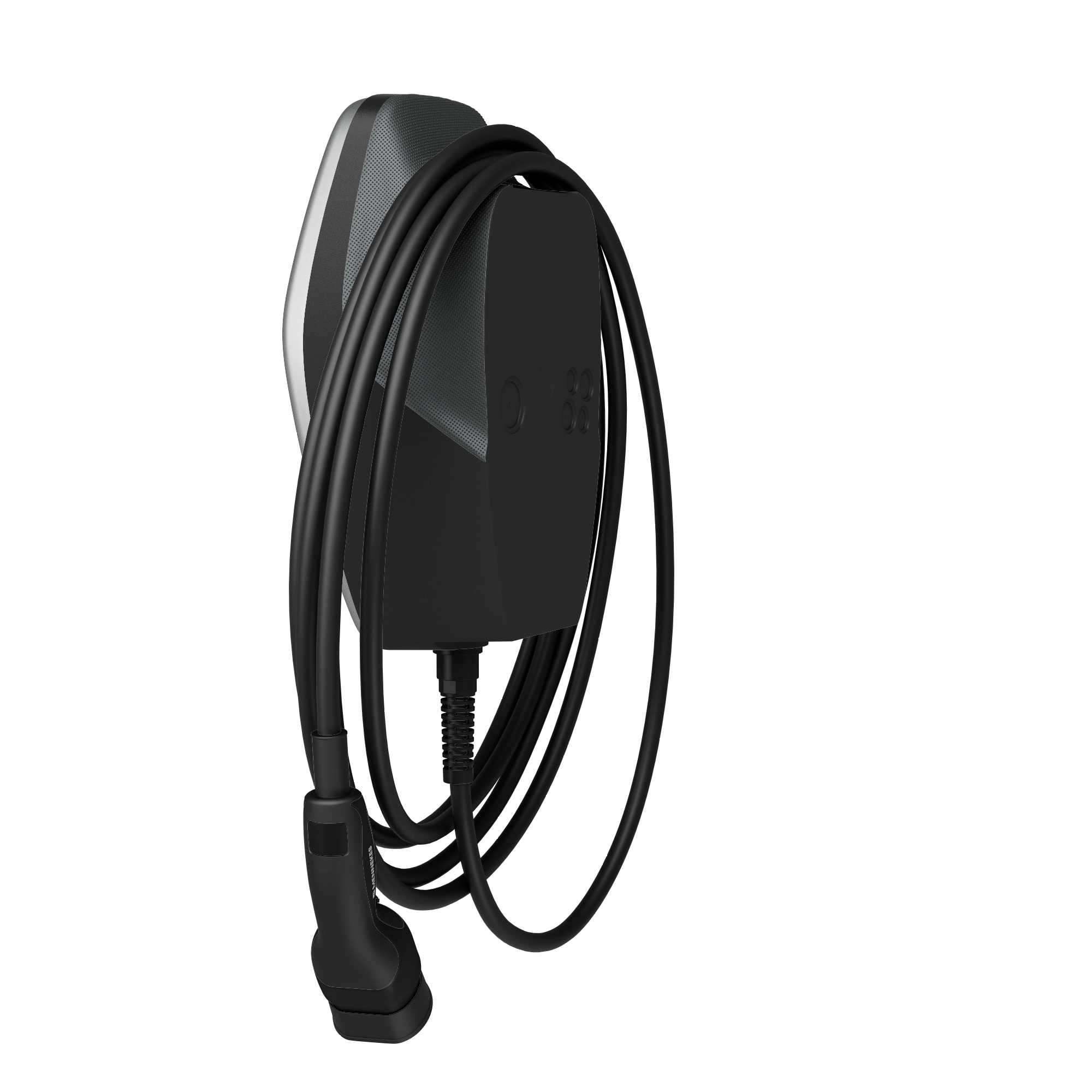

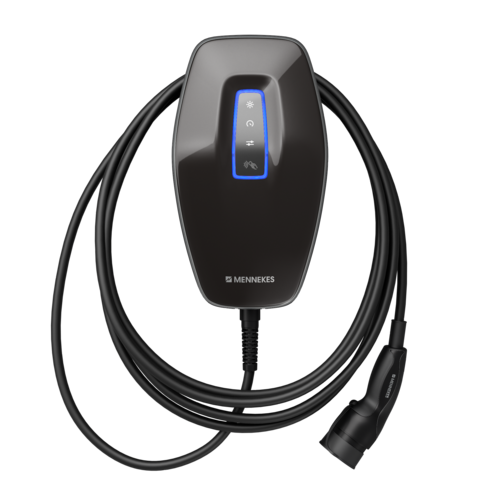

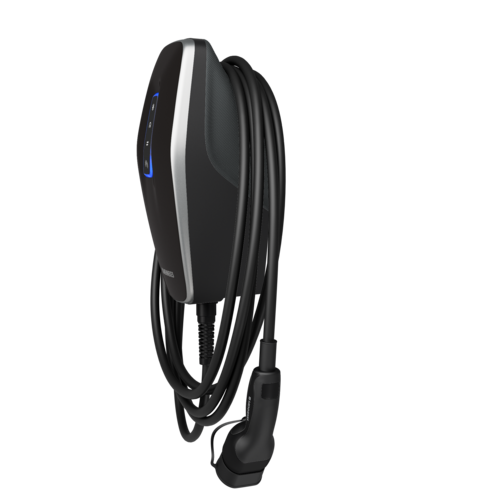

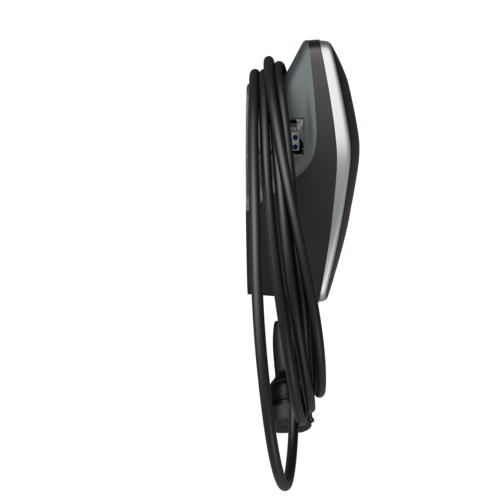

AMTRON® 4Business 730 11 C2

AMTRON® 4Business 730 - the charging station for professional charging in the commercial sector. With a flexible backend connection via OCPP, the MENNEKES AMTRON® 4Business 730 charger enables remote monitoring, control and comprehensive billing options. It is equipped with a mobile radio modem. The wallbox has an integrated MID meter that can be conveniently read from the outside. Access can be flexibly controlled via RFID authorization. Seamless integration into energy management systems is achieved via Modbus TCP/EEbus. The wallbox is prepared for ISO 15118 (PnC) and is WLAN/LAN-capable. Convenience and safety are included through app operation, floor lighting, proximity and brightness sensor. The charging station can be customized with interchangeable Front Covers from the accessories range. Other features include the permanently attached type 2 charging cable with a length of 7.5 meters and the integrated cable management. The AMTRON® 4Installers app makes it easier for installers to configure, set up and manage the charging point.
  • Convenient solar charging with electricity billing
  • 4Drivers App
  • Load management
  • Manual company car billing and payment
  • Direct backend connection
  • Backend
  • Part no.1347111205BK
  • EAN4015394304241
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Details

General data
Application

Convenient solar charging with electricity billing

Plug device

Permanently connected charging cable (7.5 m)

Authorisation

Autostart (without access protection)

Backend

IOS/ Android APP

4Drivers App

Load management

Static load management

Solar charging via an upstream, external energy meter

1- / 3-phase solar charging for charging powers of 1.4 - 11 kW

Connection to an external EMS via Modbus TCP and EEBus

Networking

via LAN to external energy management system

Protocol backend communication

OCPP 1.6j

Interface backend communication

via LAN

Communication with vehicle

IEC 61851-1 Mode 3

Prepared for ISO 15118

Product colour

midnight black

Electrical data
Connection

3 -phase

Maximum charging power per charging point

11 kW

Electricity meter (MID compliant)

yes (readable from outside)

Integrated power meter

yes

Mechanical data
Control elements

LED status indicator

Button for switching the charging modes

Proximity sensor

Bottom lighting

Directives

AMTRON® 4Business 730 11 C2 1347111205BK
