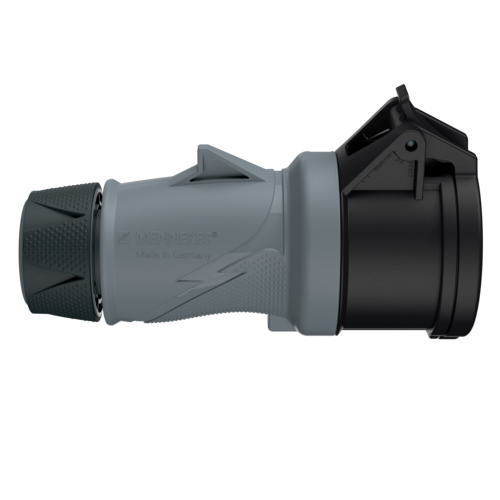

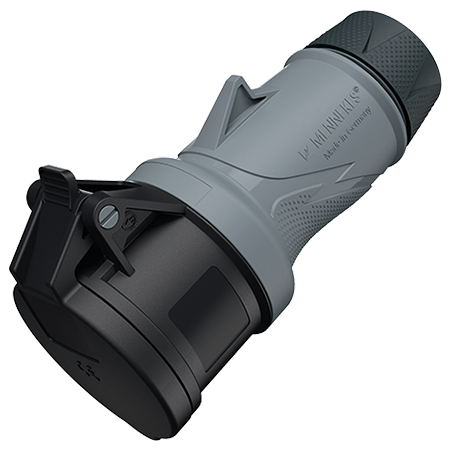

Connector PowerTOP Xtra with ErgoCONTACT 14511

Name: Connector PowerTOP Xtra with ErgoCONTACT
Brand: MENNEKES
SKU: 14511

All versions of the PowerTOP Xtra connector deliver excellent results thanks to their ergonomic design, easy to install, safe and easy connection, and X-CONTACT inside. The innovative contact sleeves ensure easy insertion and withdrawal. The PowerTOP Xtra connector has IP 54 protection class and is therefore impervious to both water spray and dust.

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw connection technology ErgoCONTACT
X-CONTACT
ergonomic enclosure design with nubbed grip zones
rubberised cable gland with sealing

strain relief and protection against kinking
thread lock and safety slide
area for self-adhesive labels
the PowerTOP Xtra connector replaces the ProTOP connector 310

Part no.14511
EAN4015394293934
Std. Pack. 10

ErgoCONTACT®

Screw connection technology

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Connector PowerTOP Xtra with ErgoCONTACT 14511

Ampere	16 A
Poles	5 p
Voltage	500 V
Clock position	7 h
Hertz	50-60 Hz
Connection technology	Screw terminals, ErgoCONTACT
Contact	X-CONTACT
Protection type	IP54
Weight	291 g
Certifications	VDE CQC CB Zertifikat
