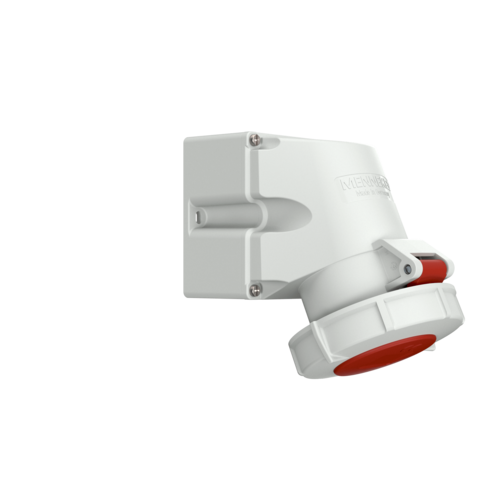

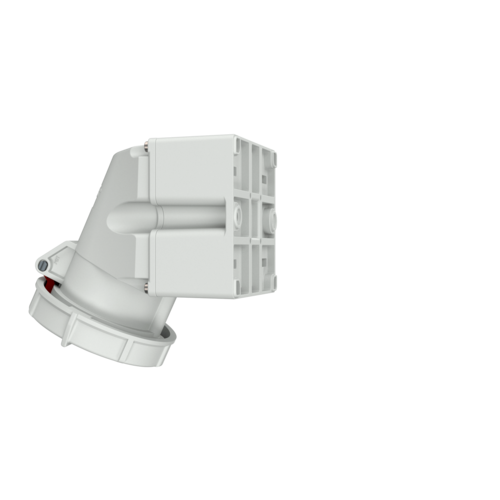

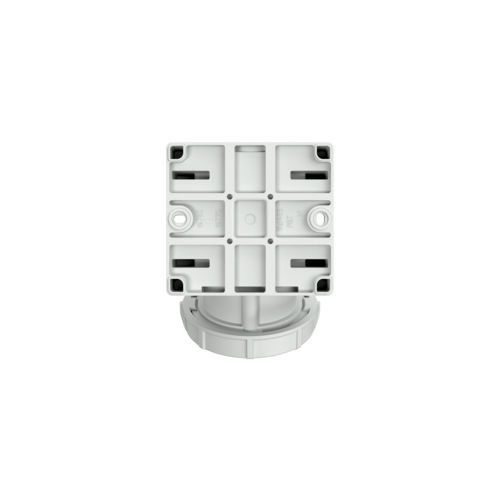

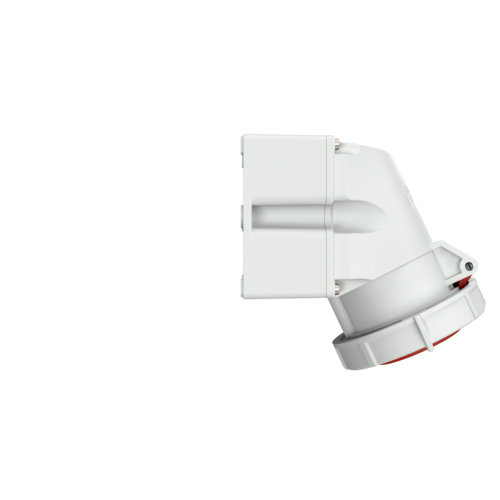

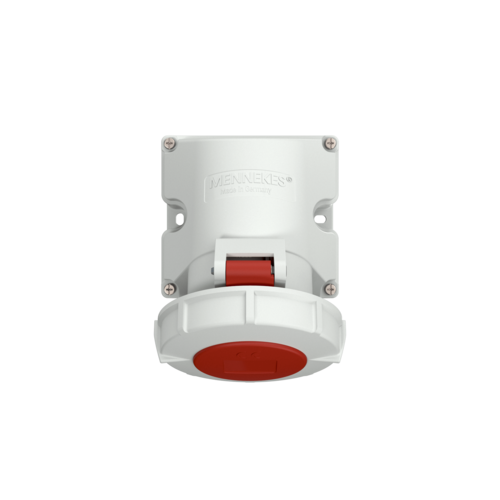

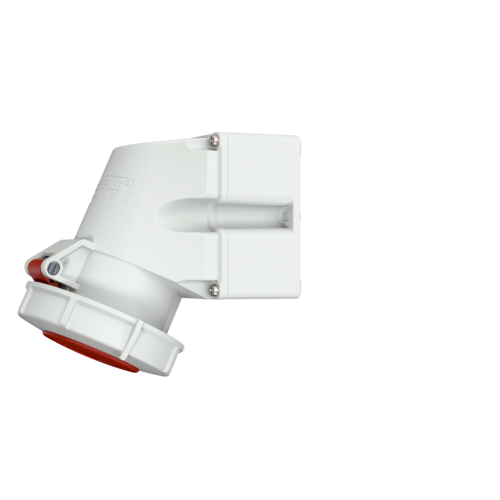

Wall mounted receptacle with TwinCONTACT 9172
The waterproof and dustproof CEE wall mounted receptacle for use in harsh environmental conditions.
- screwless spring terminals
- highly resistant to chemicals
- suitable for through wiring
- with 2 external fixing points
- receptacles are designed for adding an auxiliary contact switch
- enclosure base can be turned 180°
Technical specifications
Wall mounted receptacle with TwinCONTACT 9172
| Ampere | 32 A |
|---|---|
| Poles | 4 p |
| Voltage | 400 V |
| Clock position | 6 h |
| Hertz | 50-60 Hz |
| Connection technology | Screwless - TwinCONTACT |
| Contact | standard |
| Protection type | IP67 |
| Enclosure material | Plastic, high resistance to chemicals / AMELAN |
| Weight | 498 g |
| Certifications |
CQC VDE CB Zertifikat |
