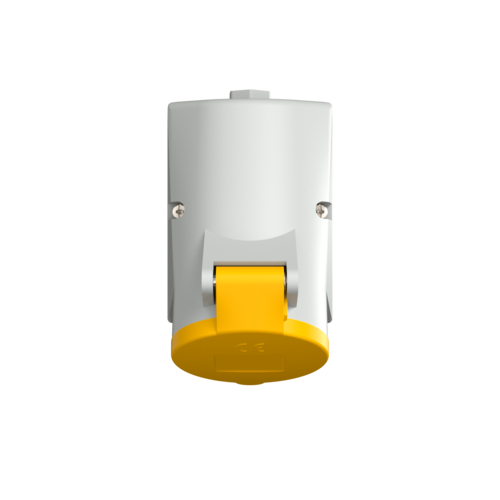

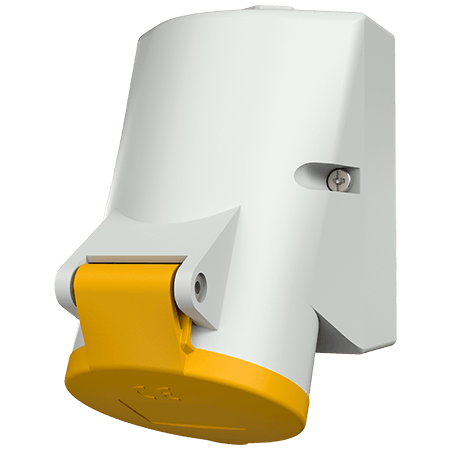

MENNEKES Wall mounted receptacle with TwinCONTACT 1719
MENNEKES Wall mounted receptacle with TwinCONTACT 1719 images3d

Wall mounted receptacle with TwinCONTACT 1719

The compact CEE wall mounted receptacle for solutions in the sector of 16 A.

Ampere 16 A
Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • internal fixing
  • 4 p and 5 p receptacles the enclosure can be turned 180°
  • Part no.1719
  • EAN4015394213598
  • Std. Pack. 10
TwinCONTACT

Screwless - TwinCONTACT

Screwless spring terminals

Read more

Technical specifications

Wall mounted receptacle with TwinCONTACT 1719

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP44
Weight 120 g
Certifications VDE

Datasheets & Downloads

Wall mounted receptacle with TwinCONTACT 1719

Product infoWall mounted receptacle with TwinCONTACT 1719 PDF, 136 KB
Mounting instructionsWall mounted receptacle with TwinCONTACT 1719 PDF, 740 KB
Dimensional drawing portraitWall mounted receptacle with TwinCONTACT 1719 PNG, 96 KB
Dimensional drawing landscape formatWall mounted receptacle with TwinCONTACT 1719 PNG, 97 KB

Directives

Wall mounted receptacle with TwinCONTACT 1719

REACh
RoHS
