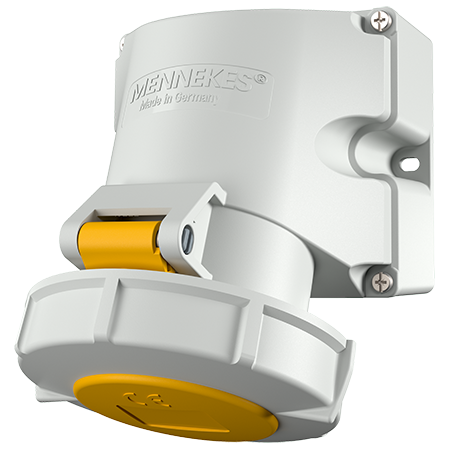

MENNEKES Wall mounted receptacle 9350

Wall mounted receptacle 9350

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
highly resistant to chemicals
with 2 external fixing points

enclosure base can be turned 180°
receptacles are designed for adding an auxiliary contact switch

Part no.9350
EAN4015394280491
Std. Pack. 5

Standard screw terminals

Screw terminals

Standard screw terminals

Resistant to chemicals

Resistant to chemicals

Increased chemical resistance

Technical specifications

Wall mounted receptacle 9350

Ampere	32 A
Poles	3 p
Voltage	110 V
Clock position	4 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP67
Enclosure material	Plastic, high resistance to chemicals / AMELAN
Weight	512 g
Certifications	EAC

Dimensional drawing landscape format

Datasheets & Downloads

Wall mounted receptacle 9350

Product infoWall mounted receptacle 9350 PDF, 298 KB

Mounting instructionsWall mounted receptacle 9350 PDF, 128 KB

Dimensional drawing portraitWall mounted receptacle 9350 PNG, 133 KB

Dimensional drawing landscape formatWall mounted receptacle 9350 PNG, 135 KB

Directives

Wall mounted receptacle 9350

Appropriate products

Wall mounted receptacle 9350 with IP67

MENNEKES Plug AM-TOP 289

Plug AM-TOP

Part no. 289

Protection type: IP67
Ampere: 32 A
Poles: 3 p
Voltage: 110 V
Connection technology: Screw terminals

MENNEKES Connector AM-TOP 551

Connector AM-TOP

Part no. 551

Protection type: IP67
Ampere: 32 A
Poles: 3 p
Voltage: 110 V
Connection technology: Screw terminals

MENNEKES Panel mounted receptacle 1501

Panel mounted receptacle

Part no. 1501

Protection type: IP67
Ampere: 32 A
Poles: 3 p
Voltage: 110 V
Connection technology: Screw terminals

MENNEKES Wall mounted receptacle DUOi 5614304G

Wall mounted receptacle DUOi

Part no. 5614304G

Protection type: IP67 / IP69
Ampere: 32 A
Poles: 3 p
Voltage: 110 V
Connection technology: Screw terminals

Appropriate accessories

Wall mounted receptacle 9350

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
