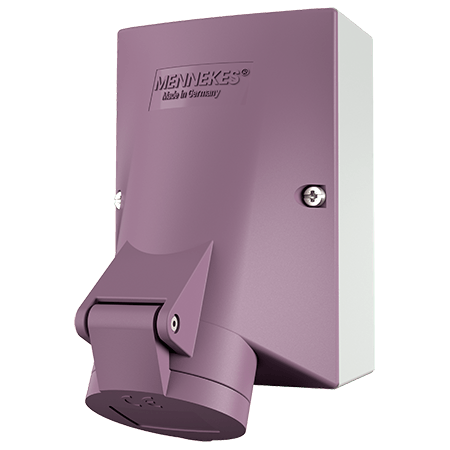

Wall mounted receptacle 597

Name: Wall mounted receptacle
Brand: MENNEKES
SKU: 597

Ampere 16 A 32 A

Poles

Voltage

screw terminals
internal fixing
one cable entry at top and two blind entries (can be cut out) at bottom

lower part of enclosure base can be turned 180°
receptacles are designed for adding an auxiliary contact switch

Part no.597
EAN4015394004400
Std. Pack. 10

Technical specifications

Wall mounted receptacle 597

Ampere	32 A
Poles	3 p
Voltage	20-25 V
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP44
Weight	278 g
Certifications	EAC

Datasheets & Downloads

Wall mounted receptacle 597

Product infoWall mounted receptacle 597 PDF, 144 KB

Mounting instructionsWall mounted receptacle 597 PDF, 128 KB

Dimensional drawing portraitWall mounted receptacle 597 PNG, 100 KB

Dimensional drawing landscape formatWall mounted receptacle 597 PNG, 100 KB

Directives

Wall mounted receptacle 597

REACh

RoHS

Appropriate accessories

Wall mounted receptacle 597

Wall mounted receptacle

Part no. 734

with highly heat resistant contact carrier, nickel plated contacts, internal fixing, one cable entry at the top, two blind entries (can be cut out) at the bottom, enclosure base can be turned 180°
