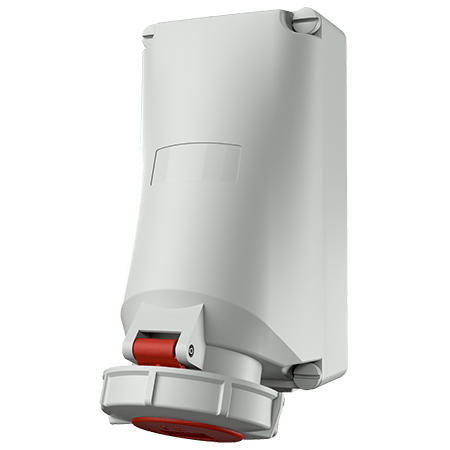

MENNEKES Wall mounted receptacle 5516

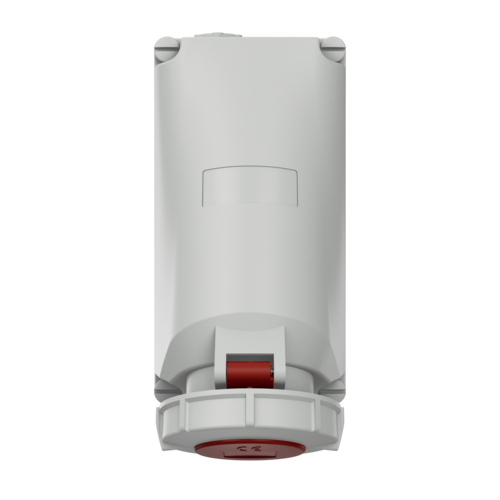

MENNEKES Wall mounted receptacle 5516 images3d

Wall mounted receptacle 5516

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • suitable for through wiring
  • with fixing points for terminal strip part no. 40113
  • Part no.5516
  • EAN4015394027249
  • Std. Pack. 1

Technical specifications

Wall mounted receptacle 5516

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 842 g
Certifications EAC

Datasheets & Downloads

Wall mounted receptacle 5516

Product infoWall mounted receptacle 5516 PDF, 140 KB
Manufacturer‘s declarationWall mounted receptacle 5516 PDF, 38 KB
CAD data STPWall mounted receptacle 5516 ZIP, 569 KB
CAD data 3D DWGWall mounted receptacle 5516 ZIP, 2 MB
Mounting instructionsWall mounted receptacle 5516 PDF, 128 KB
Dimensional drawing portraitWall mounted receptacle 5516 PNG, 113 KB
Dimensional drawing landscape formatWall mounted receptacle 5516 PNG, 115 KB

Directives

Wall mounted receptacle 5516

REACh
RoHS
