Show all Wall mounted receptacles / Show all Wall mounted receptacle

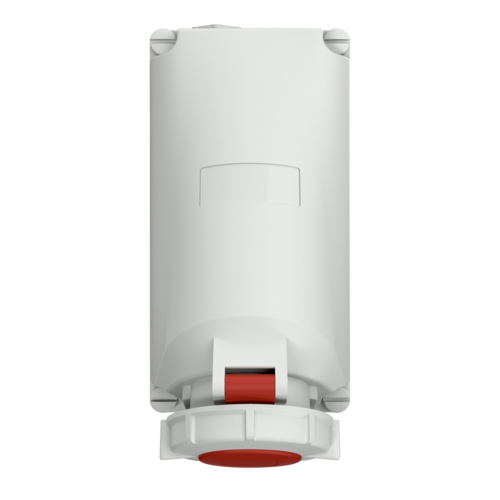

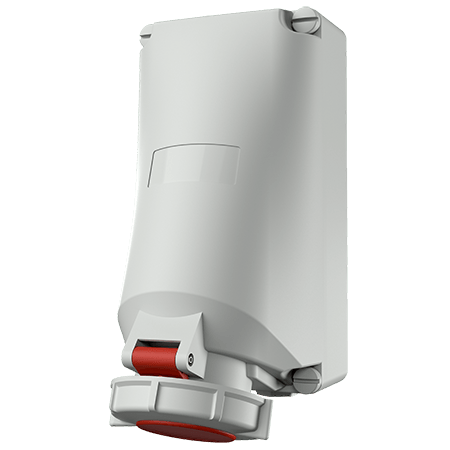

MENNEKES Wall mounted receptacle 5515
MENNEKES Wall mounted receptacle 5515 images3d

Wall mounted receptacle 5515

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • suitable for through wiring
  • with fixing points for terminal strip part no. 40113
  • Part no.5515
  • EAN4015394027232
  • Std. Pack. 1

Technical specifications

Wall mounted receptacle 5515

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 740 g
Certifications EAC

Datasheets & Downloads

Wall mounted receptacle 5515

Product infoWall mounted receptacle 5515 PDF, 141 KB
Manufacturer‘s declarationWall mounted receptacle 5515 PDF, 62 KB
CAD data STPWall mounted receptacle 5515 ZIP, 597 KB
CAD data 3D DWGWall mounted receptacle 5515 ZIP, 2 MB
Mounting instructionsWall mounted receptacle 5515 PDF, 128 KB
Dimensional drawing portraitWall mounted receptacle 5515 PNG, 113 KB
Dimensional drawing landscape formatWall mounted receptacle 5515 PNG, 115 KB

Directives

Wall mounted receptacle 5515

REACh
RoHS
