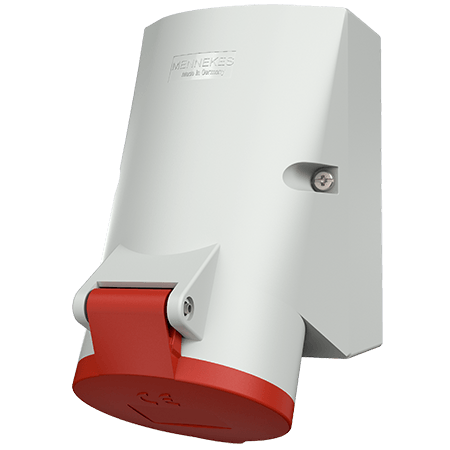

Wall mounted receptacle 20235A

Name: Wall mounted receptacle
Brand: MENNEKES
SKU: 20235A

Ampere 16 A 32 A

Poles

Voltage

Clock position

Wall mounted receptacle 20235A

Ampere	16 A
Poles	5 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	highly heat resistant contact carrier nickel plated contacts
Protection type	IP44
Weight	297 g
Certifications	EAC

Wall mounted receptacle 20235A

Wall mounted receptacle 20235A

Wall mounted receptacle 20235A

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

Part no. 41000

for various wall mounted und panel mounted receptacles 16A and 32A
