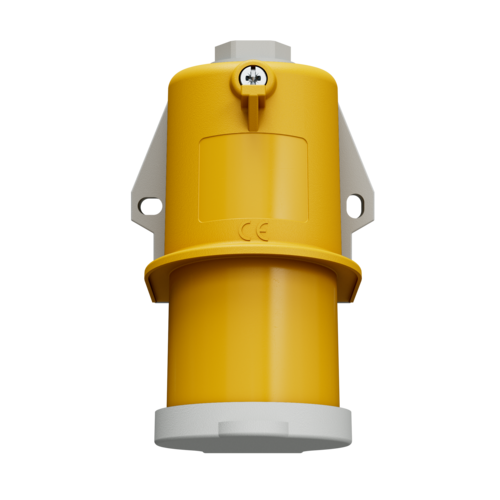

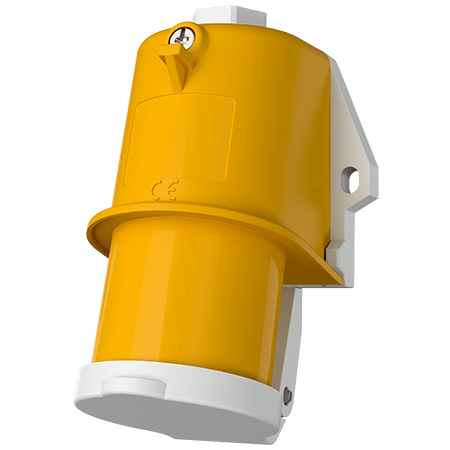

MENNEKES Wall mounted inlet 846
MENNEKES Wall mounted inlet 846 images3d

Wall mounted inlet 846

Ampere 16 A
  • screw terminals
  • with hinged lid
  • for internal or external fixing
  • Part no.846
  • EAN4015394133599
  • Std. Pack. 10
Standard screw terminals

Screw terminals

Standard screw terminals

Read more

Technical specifications

Wall mounted inlet 846

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 140 g
Certifications VDE
EAC
CQC

Datasheets & Downloads

Wall mounted inlet 846

Product infoWall mounted inlet 846 PDF, 88 KB
Dimensional drawing portraitWall mounted inlet 846 PNG, 57 KB
Dimensional drawing landscape formatWall mounted inlet 846 PNG, 57 KB

Directives

Wall mounted inlet 846

REACh
RoHS

Appropriate accessories

Wall mounted inlet 846

MENNEKES Hinged lid 41482

Hinged lid

Part no. 41482

suitable for wall mounted inlets part no. 843, 844, 846, 847
