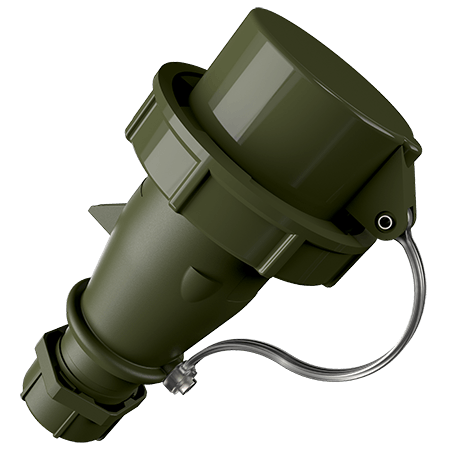

MENNEKES Plug TM 24760

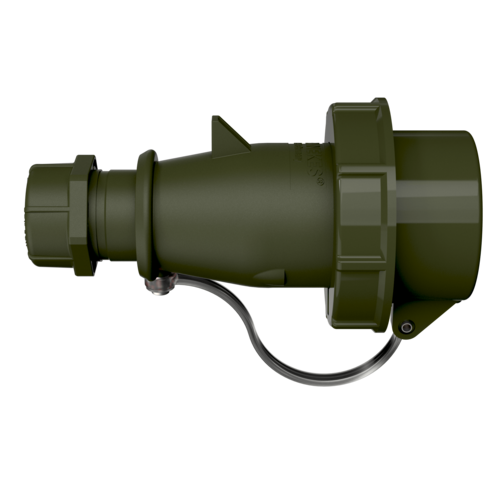

MENNEKES Plug TM 24760 images3d

Plug TM 24760

Ampere 16 A 32 A
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • with protective cap
  • (form CP)
  • Part no.24760
  • EAN4015394260714
  • Std. Pack. 10

Technical specifications

Plug TM 24760

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 353 g
Certifications VDE
CB Zertifikat

Datasheets & Downloads

Plug TM 24760

Product infoPlug TM 24760 PDF, 120 KB
Manufacturer‘s declarationPlug TM 24760 PDF, 37 KB
CAD data STPPlug TM 24760 ZIP, 1 MB
CAD data 3D DWGPlug TM 24760 ZIP, 3 MB
Mounting instructionsPlug TM 24760 PDF, 2 MB
Dimensional drawing portraitPlug TM 24760 PNG, 72 KB
Dimensional drawing landscape formatPlug TM 24760 PNG, 72 KB

Directives

Plug TM 24760

REACh
RoHS

Appropriate accessories

Plug TM 24760

MENNEKES Protective cover TM 40928

Protective cover TM

Part no. 40928

for watertight plugs and inlets, (form G)
