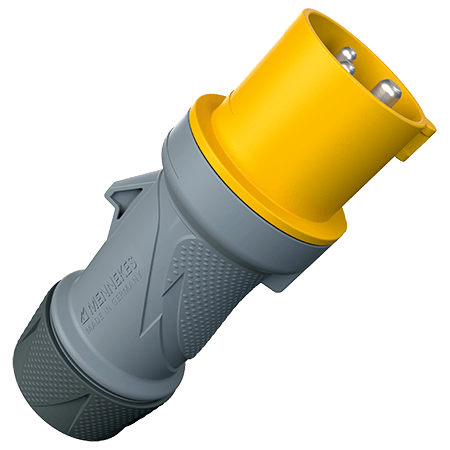

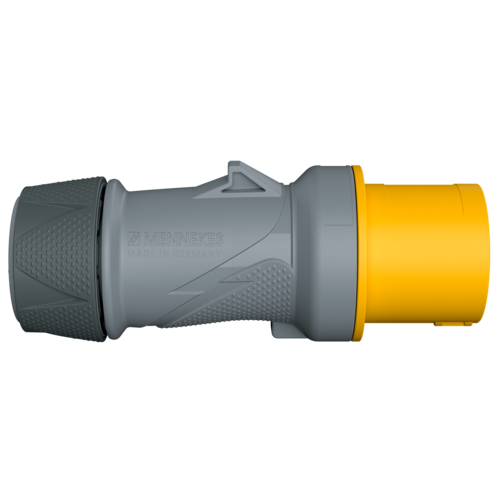

Plug PowerTOP Xtra R with ErgoCONTACT 13550
Across all versions and applications, PowerTOP Xtra plugs excel with proven success factors: ergonomic design, easy installation, and safe and straightforward connection. The PowerTOP Xtra plug boasts IP54 protection class and is therefore impervious to water spray and dust.
- screw connection technology ErgoCONTACT
- highly heat resistant contact carrier
- nickel plated contacts
- ergonomic enclosure design with nubbed grip zones
- rubberised cable gland with sealing
- strain relief and protection against kinking
- thread lock and safety slide
- area for self-adhesive labels
Technical specifications
Plug PowerTOP Xtra R with ErgoCONTACT 13550
| Ampere | 16 A |
|---|---|
| Poles | 3 p |
| Voltage | 110 V |
| Clock position | 4 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals, ErgoCONTACT |
| Contact |
highly heat resistant contact carrier nickel plated contacts |
| Protection type | IP54 |
| Weight | 170 g |
| Certifications |
VDE CB Zertifikat |
