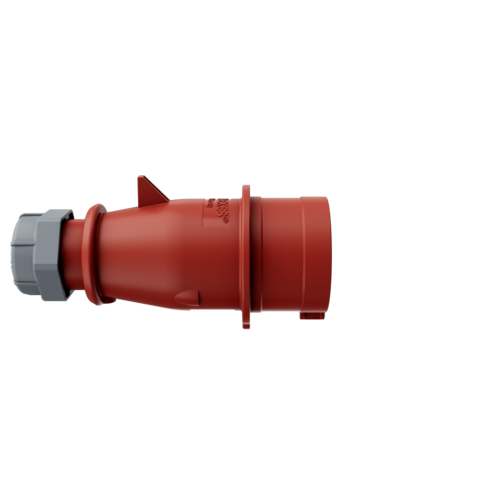

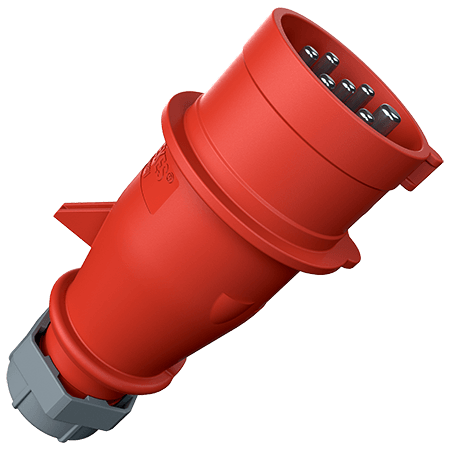

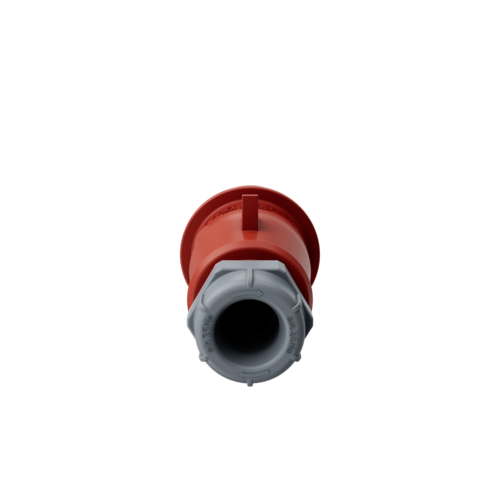

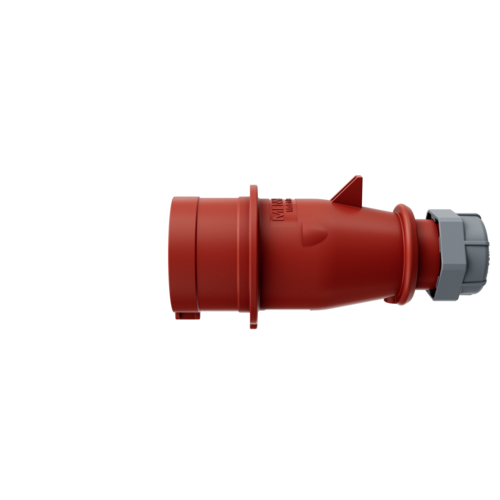

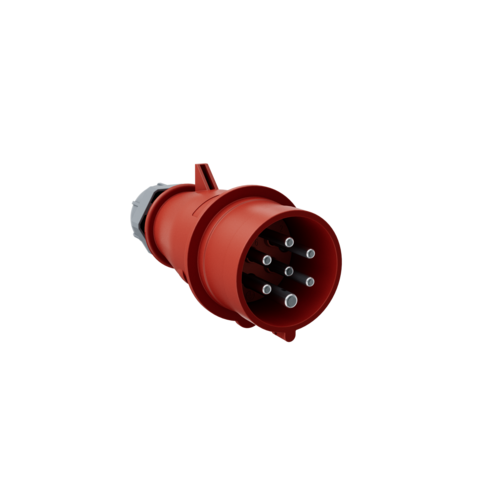

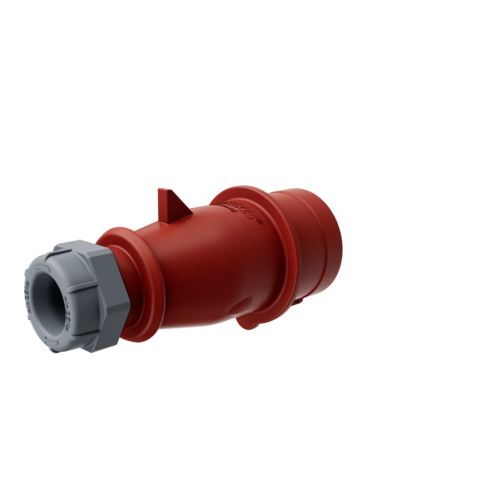

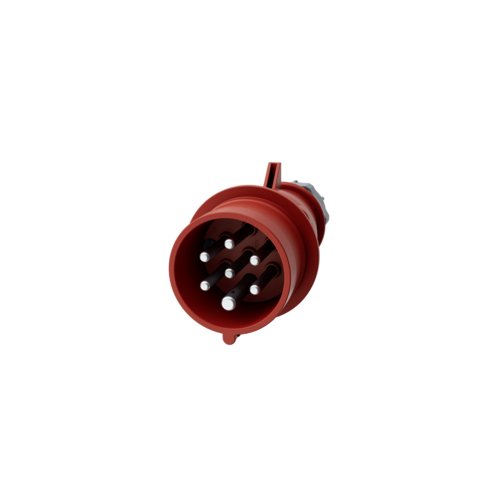

MENNEKES Plug AM-TOP 742
MENNEKES Plug AM-TOP 742 images3d

Plug AM-TOP 742

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.742
  • EAN4015394005674
  • Std. Pack. 10

Technical specifications

Plug AM-TOP 742

Ampere 16 A
Poles 7 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP44
Weight 195 g
Certifications CQC

Datasheets & Downloads

Plug AM-TOP 742

Product infoPlug AM-TOP 742 PDF, 103 KB
Manufacturer‘s declarationPlug AM-TOP 742 PDF, 53 KB
CAD data STPPlug AM-TOP 742 ZIP, 1 MB
CAD data 3D DWGPlug AM-TOP 742 ZIP, 4 MB
Mounting instructionsPlug AM-TOP 742 PDF, 2 MB
Dimensional drawing portraitPlug AM-TOP 742 PNG, 64 KB
Dimensional drawing landscape formatPlug AM-TOP 742 PNG, 64 KB

Directives

Plug AM-TOP 742

REACh
RoHS
