Show all Standard plugs
/
Show all Plug AM-TOP

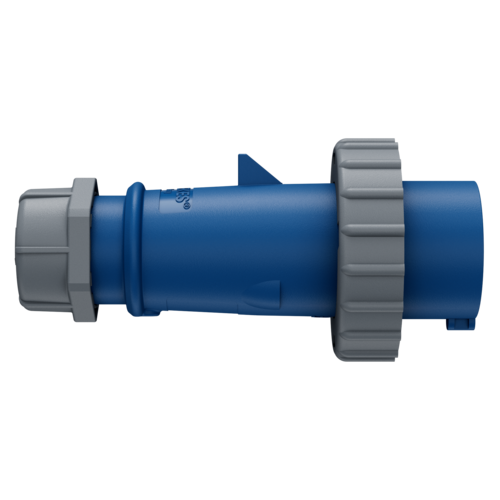

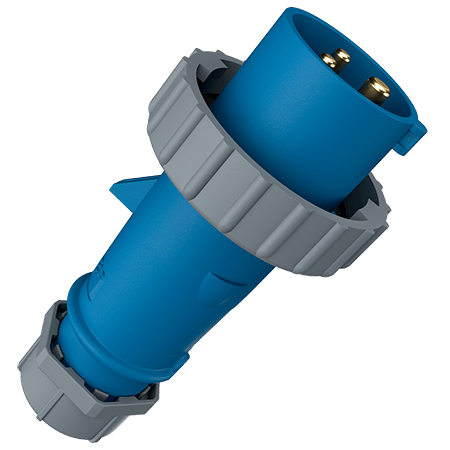

Plug AM-TOP 278
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
50-500 V
500 V
Clock position
2 h
4 h
6 h
7 h
9 h
10 h
screw terminals
single part body
cable gland and sealing
strain relief and protection against kinking
Part no.
278
EAN
4015394001904
Std. Pack.
10
Add to shopping basket
Technical specifications
Plug AM-TOP 278
Ampere
16 A
Poles
3 p
Voltage
230 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP67
Weight
160 g
Certifications
CQC
VDE
Datasheets & Downloads
Plug AM-TOP 278
Product info
Plug AM-TOP 278
PDF, 128 KB
Manufacturer‘s declaration
Plug AM-TOP 278
ZIP, 245 KB
CAD data STP
Plug AM-TOP 278
ZIP, 631 KB
CAD data 3D DWG
Plug AM-TOP 278
ZIP, 2 MB
Mounting instructions
Plug AM-TOP 278
PDF, 2 MB
Dimensional drawing portrait
Plug AM-TOP 278
PNG, 90 KB
Dimensional drawing landscape format
Plug AM-TOP 278
PNG, 91 KB
Directives
Plug AM-TOP 278
REACh
RoHS
Appropriate accessories
Plug AM-TOP 278
Protective cover
Part no. 40784
for watertight plugs, wall mounted and panel mounted inlets 16 A, 3 p
more
