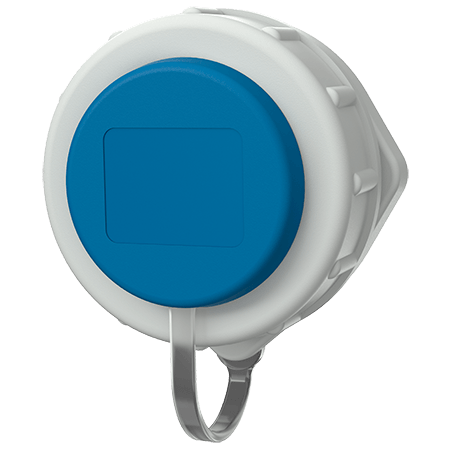

MENNEKES Panel mounted receptacle SCHUKO® 17038

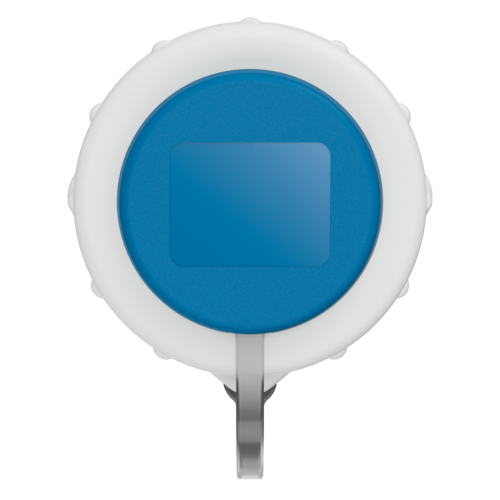

MENNEKES Panel mounted receptacle SCHUKO® 17038 images3d

Panel mounted receptacle SCHUKO® 17038

Ampere 16 A
  • screw terminals
  • bayonet lock lid attached by a strap
  • oval flange
  • two fixing holes
  • Part no.17038
  • EAN4015394288060
  • Std. Pack. 10
Standard screw terminals

Screw terminals

Standard screw terminals

Read more

Technical specifications

Panel mounted receptacle SCHUKO® 17038

Ampere 16 A
Poles 2 p+PE
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP68
Shutter No
Weight 93 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle SCHUKO® 17038

Product infoPanel mounted receptacle SCHUKO® 17038 PDF, 99 KB
CAD data STPPanel mounted receptacle SCHUKO® 17038 ZIP, 704 KB
CAD data 3D DWGPanel mounted receptacle SCHUKO® 17038 ZIP, 1 MB
Dimensional drawing portraitPanel mounted receptacle SCHUKO® 17038 PNG, 37 KB
Dimensional drawing landscape formatPanel mounted receptacle SCHUKO® 17038 PNG, 37 KB

Directives

Panel mounted receptacle SCHUKO® 17038

REACh
RoHS
