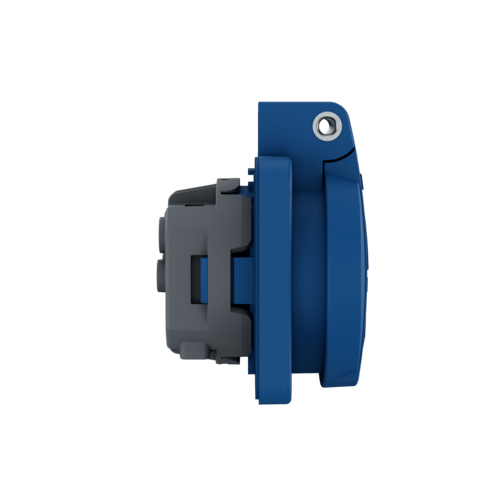

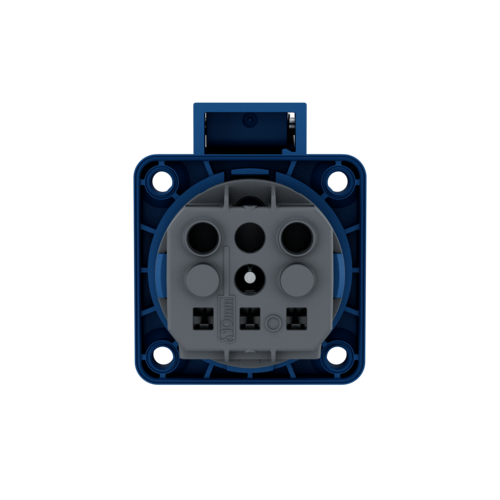

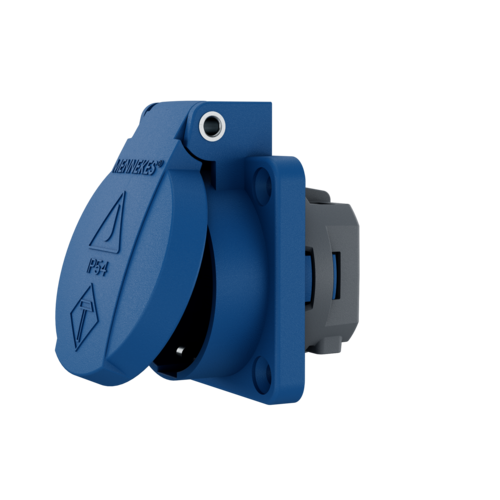

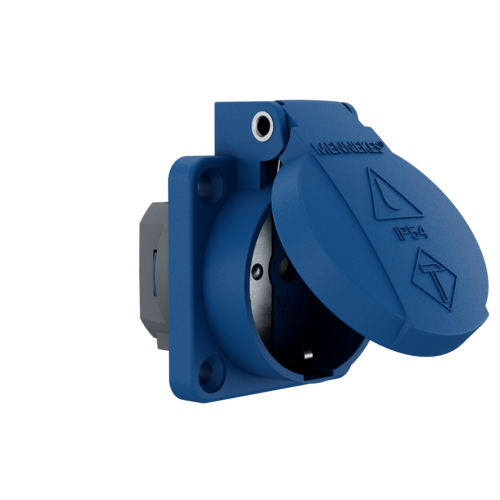

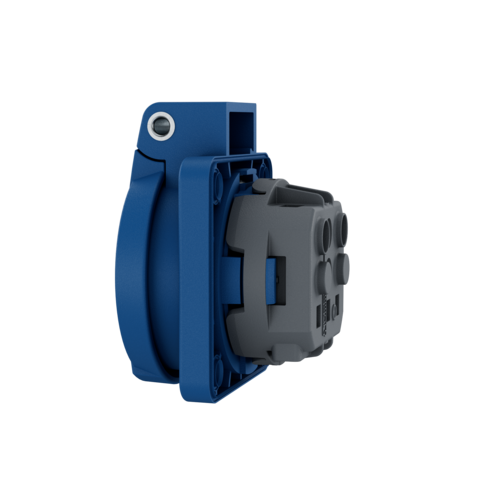

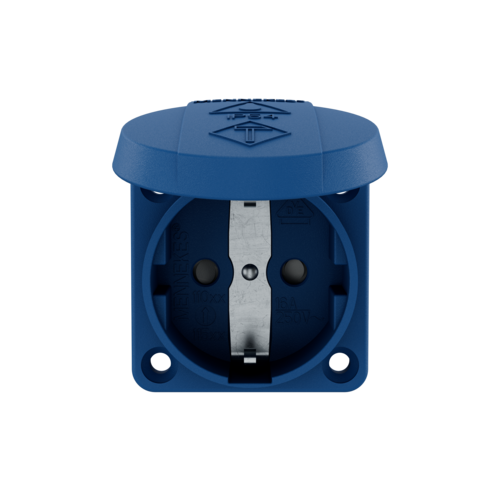

MENNEKES Panel mounted receptacle SCHUKO® 11061

Panel mounted receptacle SCHUKO® 11061

Ampere 16 A
  • with hinged lid
  • 3 plug-in terminals as connecting terminals for 1.5 – 2.5 mm²
  • other colours on request
  • Part no.11061
  • EAN4015394184737
  • Std. Pack. 100

Technical specifications

Panel mounted receptacle SCHUKO® 11061

Ampere 16 A
Poles 2 p+PE
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP54
Shutter Yes
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 43 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle SCHUKO® 11061

Product infoPanel mounted receptacle SCHUKO® 11061 PDF, 133 KB
Dimensional drawing portraitPanel mounted receptacle SCHUKO® 11061 PNG, 50 KB
Dimensional drawing landscape formatPanel mounted receptacle SCHUKO® 11061 PNG, 79 KB

Directives

Panel mounted receptacle SCHUKO® 11061

REACh
RoHS
