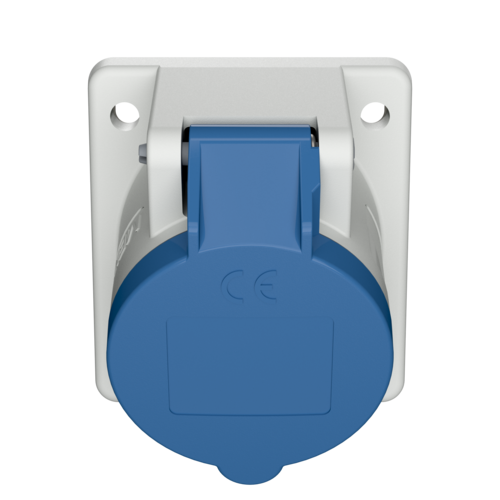

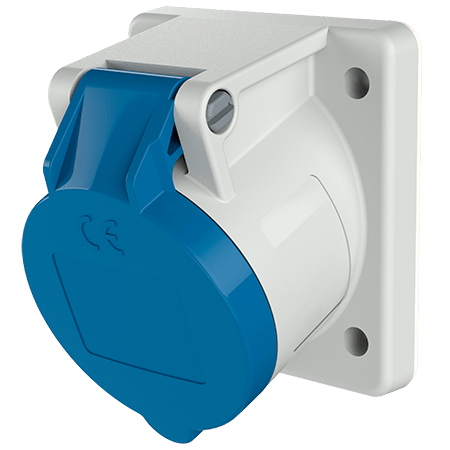

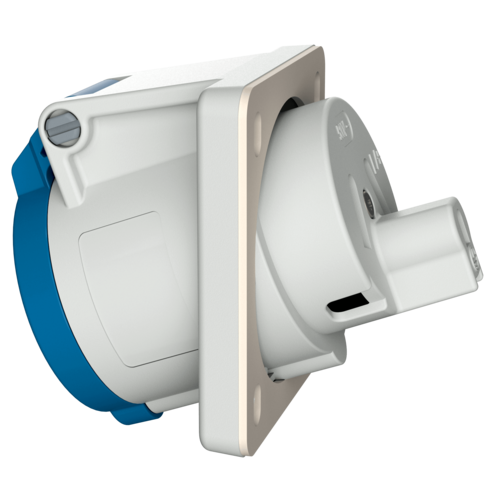

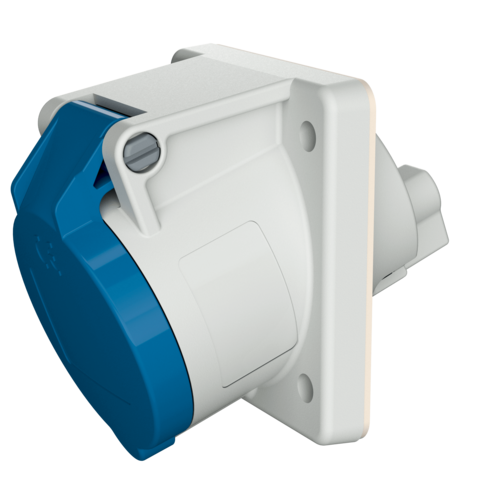

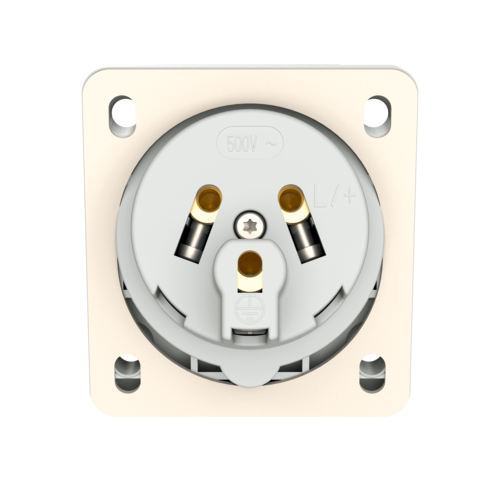

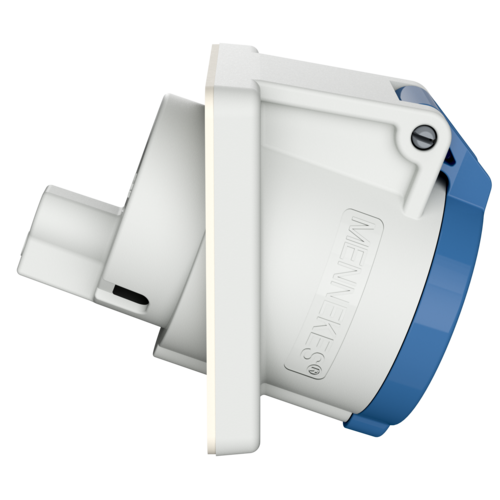

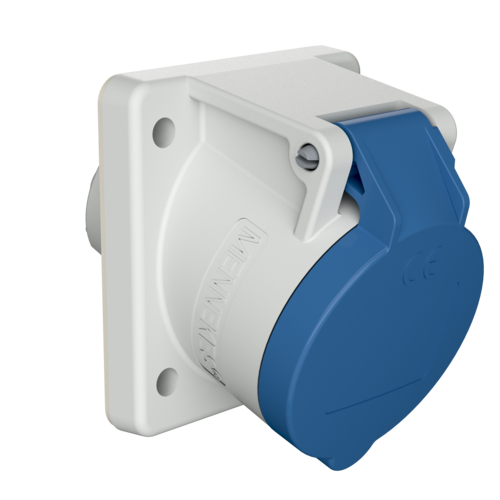

MENNEKES Panel mounted receptacle 857
MENNEKES Panel mounted receptacle 857 images3d

Panel mounted receptacle 857

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • small flange dimensions
  • 20° inclination
  • Part no.857
  • EAN4015394191094
  • Std. Pack. 10

Technical specifications

Panel mounted receptacle 857

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 68x62 mm
Fixing hole 47x47 mm
Inclination 20 °
Weight 122 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle 857

Product infoPanel mounted receptacle 857 PDF, 144 KB
Manufacturer‘s declarationPanel mounted receptacle 857 PDF, 43 KB
CAD data STPPanel mounted receptacle 857 ZIP, 730 KB
CAD data 3D DWGPanel mounted receptacle 857 ZIP, 1 MB
Mounting instructionsPanel mounted receptacle 857 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 857 PNG, 76 KB
Dimensional drawing landscape formatPanel mounted receptacle 857 PNG, 76 KB

Directives

Panel mounted receptacle 857

REACh
RoHS
