Show all Panel mounted receptacles switched and interlocked
/
Show all Panel mounted receptacle DUO

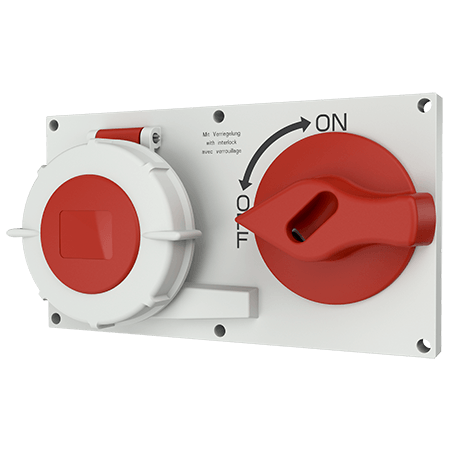

Panel mounted receptacle 7524
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
500 V
Clock position
4 h
6 h
7 h
plug-in terminals
for horizontal installation
switched
mechanical DUO-interlock
receptacles can be padlocked
Part no.
7524
EAN
4015394228080
Std. Pack.
5
Add to shopping basket
Technical specifications
Panel mounted receptacle 7524
Ampere
16 A
Poles
4 p
Voltage
400 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Plug-in terminals
Contact
standard
Protection type
IP67
Enclosure material
Plastic
Weight
564 g
Certifications
CQC
Datasheets & Downloads
Panel mounted receptacle 7524
Product info
Panel mounted receptacle 7524
PDF, 101 KB
Manufacturer‘s declaration
Panel mounted receptacle 7524
PDF, 55 KB
CAD data STP
Panel mounted receptacle 7524
ZIP, 1 MB
CAD data 3D DWG
Panel mounted receptacle 7524
ZIP, 3 MB
Dimensional drawing portrait
Panel mounted receptacle 7524
PNG, 53 KB
Dimensional drawing landscape format
Panel mounted receptacle 7524
PNG, 53 KB
Directives
Panel mounted receptacle 7524
REACh
RoHS
