Show all Panel mounted receptacles
/
Show all Panel mounted receptacle

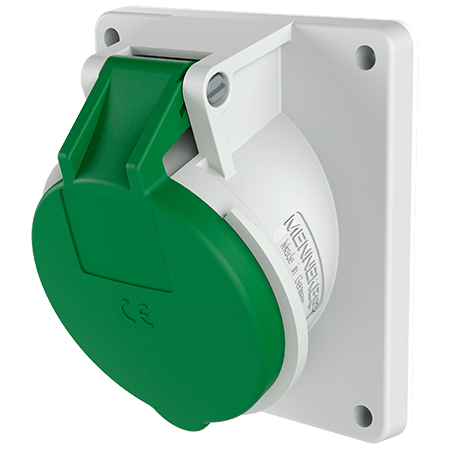

Panel mounted receptacle 3190
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
50-500 V
500 V
Clock position
2 h
4 h
6 h
7 h
9 h
10 h
screw terminals
20° inclination
Part no.
3190
EAN
4015394018056
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted receptacle 3190
Ampere
16 A
Poles
5 p
Voltage
50-500 V
Clock position
2 h
Hertz
300-500 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP44
Flange
100x92 mm
Fixing hole
85x77 mm
Inclination
20 °
Weight
204 g
Certifications
EAC
Datasheets & Downloads
Panel mounted receptacle 3190
Product info
Panel mounted receptacle 3190
PDF, 129 KB
Mounting instructions
Panel mounted receptacle 3190
PDF, 128 KB
Dimensional drawing portrait
Panel mounted receptacle 3190
PNG, 49 KB
Dimensional drawing landscape format
Panel mounted receptacle 3190
PNG, 49 KB
Directives
Panel mounted receptacle 3190
REACh
RoHS
