Show all Panel mounted receptacles
/
Show all Panel mounted receptacle

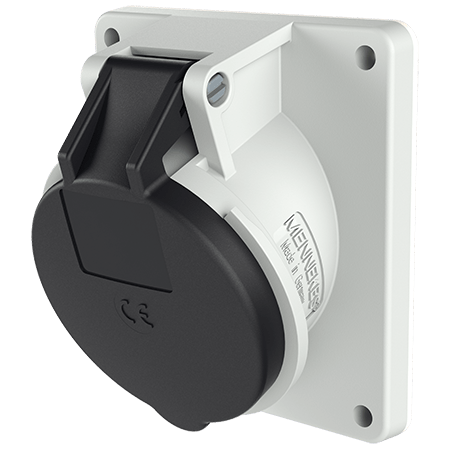

Panel mounted receptacle 3188
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
50-500 V
500 V
Clock position
2 h
4 h
6 h
7 h
9 h
10 h
screw terminals
20° inclination
Part no.
3188
EAN
4015394018032
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted receptacle 3188
Ampere
16 A
Poles
5 p
Voltage
500 V
Clock position
7 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP44
Flange
100x92 mm
Fixing hole
85x77 mm
Inclination
20 °
Weight
204 g
Certifications
EAC
Datasheets & Downloads
Panel mounted receptacle 3188
Product info
Panel mounted receptacle 3188
PDF, 140 KB
Mounting instructions
Panel mounted receptacle 3188
PDF, 128 KB
Dimensional drawing portrait
Panel mounted receptacle 3188
PNG, 49 KB
Dimensional drawing landscape format
Panel mounted receptacle 3188
PNG, 49 KB
Directives
Panel mounted receptacle 3188
REACh
RoHS
