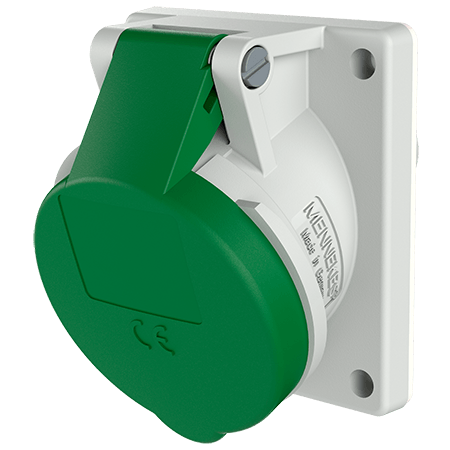

MENNEKES Panel mounted receptacle 3187

Panel mounted receptacle 3187

Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • Part no.3187
  • EAN4015394018025
  • Std. Pack. 10

Technical specifications

Panel mounted receptacle 3187

Ampere 16 A
Poles 3 p
Voltage 50-500 V
Clock position 2 h
Hertz 300-500 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 73.5x64 mm
Fixing hole 60x52 mm
Inclination 20 °
Weight 132 g
Certifications EAC

Directives

Panel mounted receptacle 3187
