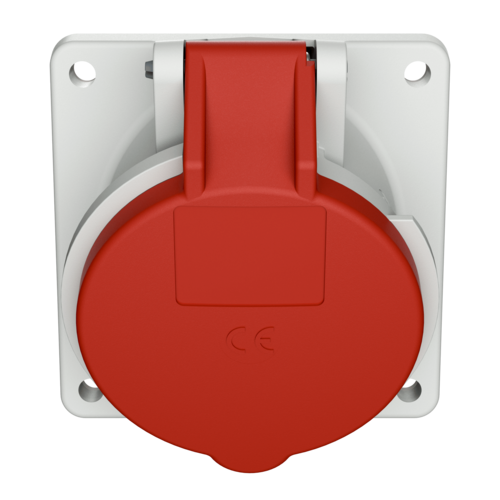

MENNEKES Panel mounted receptacle 3153

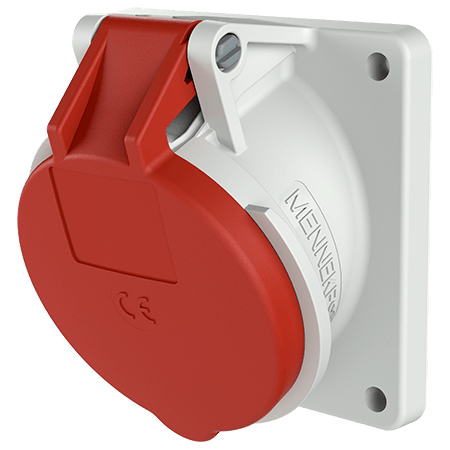

MENNEKES Panel mounted receptacle 3153 images3d

Panel mounted receptacle 3153

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • uniform flange dimensions
  • 20° inclination
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.3153
  • EAN4015394202707
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 3153

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 20 °
Weight 276 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle 3153

Product infoPanel mounted receptacle 3153 PDF, 133 KB
CAD data STPPanel mounted receptacle 3153 ZIP, 896 KB
CAD data 3D DWGPanel mounted receptacle 3153 ZIP, 2 MB
Mounting instructionsPanel mounted receptacle 3153 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 3153 PNG, 53 KB
Dimensional drawing landscape formatPanel mounted receptacle 3153 PNG, 52 KB

Directives

Panel mounted receptacle 3153

REACh
RoHS

Appropriate accessories

Panel mounted receptacle 3153

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for various wall mounted und panel mounted receptacles 16A and 32A

more
