MENNEKES Panel mounted receptacle 3136

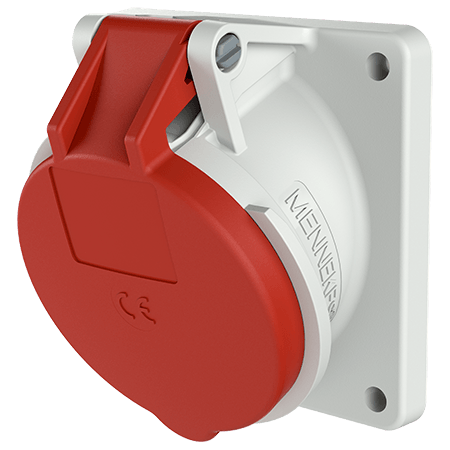

Panel mounted receptacle 3136

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • uniform flange dimensions
  • 20° inclination
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.3136
  • EAN4015394202684
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 3136

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 20 °
Weight 238 g

Datasheets & Downloads

Panel mounted receptacle 3136

Product infoPanel mounted receptacle 3136 PDF, 133 KB
CAD data STPPanel mounted receptacle 3136 ZIP, 1 MB
CAD data 3D DWGPanel mounted receptacle 3136 ZIP, 2 MB
Mounting instructionsPanel mounted receptacle 3136 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 3136 PNG, 53 KB
Dimensional drawing landscape formatPanel mounted receptacle 3136 PNG, 52 KB
