Show all Panel mounted receptacles
/
Show all Panel mounted receptacle

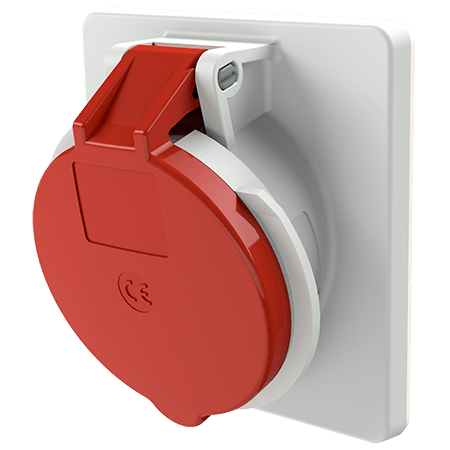

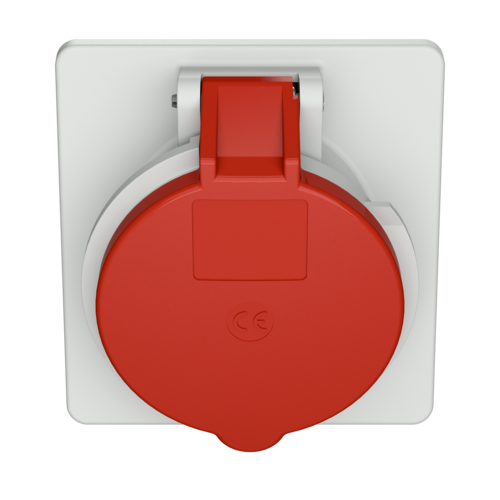

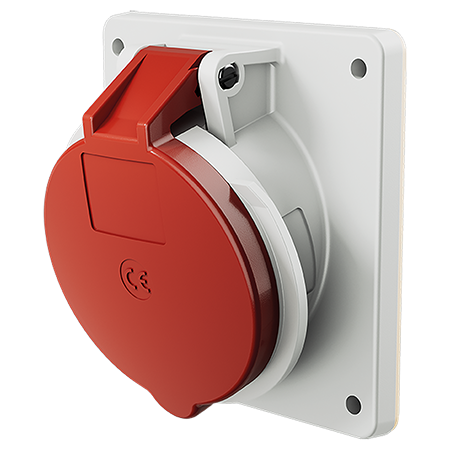

Panel mounted receptacle 20147A
Ampere
16 A
32 A
63 A
Poles
5 p
Voltage
400 V
Clock position
6 h
screw terminals
standard flange dimensions
uniform fixing hole spacing
15° inclination
receptacles are designed for adding an auxiliary contact switch
Part no.
20147A
EAN
4015394177005
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted receptacle 20147A
Ampere
32 A
Poles
5 p
Voltage
400 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP44
Flange
110x106 mm
Fixing hole
90x90 mm
Inclination
20 °
Weight
281 g
Datasheets & Downloads
Panel mounted receptacle 20147A
Product info
Panel mounted receptacle 20147A
PDF, 158 KB
CAD data STP
Panel mounted receptacle 20147A
ZIP, 561 KB
CAD data 3D DWG
Panel mounted receptacle 20147A
ZIP, 2 MB
Mounting instructions
Panel mounted receptacle 20147A
PDF, 128 KB
Dimensional drawing portrait
Panel mounted receptacle 20147A
PNG, 84 KB
Dimensional drawing landscape format
Panel mounted receptacle 20147A
PNG, 83 KB
Directives
Panel mounted receptacle 20147A
REACh
RoHS
