MENNEKES Panel mounted receptacle 1506

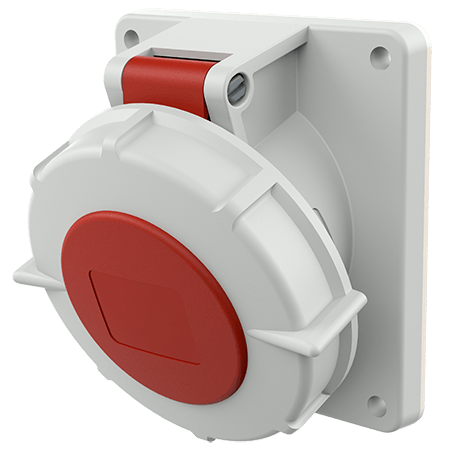

Panel mounted receptacle 1506

Ampere 16 A 32 A
  • screw terminals
  • 20° inclination
  • receptacles optional fitted with auxiliary contact
  • Part no.1506
  • EAN4015394011729
  • Std. Pack. 10

Technical specifications

Panel mounted receptacle 1506

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 291 g
Certifications CQC
VDE
CB Zertifikat

Datasheets & Downloads

Panel mounted receptacle 1506

Product infoPanel mounted receptacle 1506 PDF, 157 KB
Manufacturer‘s declarationPanel mounted receptacle 1506 PDF, 37 KB
CAD data STPPanel mounted receptacle 1506 ZIP, 1 MB
CAD data 3D DWGPanel mounted receptacle 1506 ZIP, 2 MB
Mounting instructionsPanel mounted receptacle 1506 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 1506 PNG, 99 KB
Dimensional drawing landscape formatPanel mounted receptacle 1506 PNG, 100 KB

Directives

Panel mounted receptacle 1506

REACh
RoHS

Appropriate products

Panel mounted receptacle 1506 with IP67
