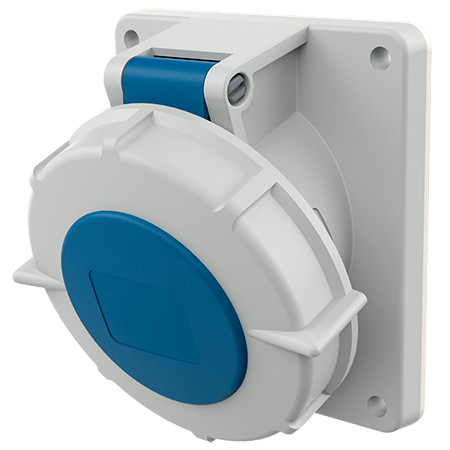

MENNEKES Panel mounted receptacle 1502
MENNEKES Panel mounted receptacle 1502 images3d

Panel mounted receptacle 1502

Ampere 16 A 32 A
  • screw terminals
  • 20° inclination
  • receptacles optional fitted with auxiliary contact
  • Part no.1502
  • EAN4015394011675
  • Std. Pack. 10

Technical specifications

Panel mounted receptacle 1502

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 281 g
Certifications CQC
VDE
CB Zertifikat

Datasheets & Downloads

Panel mounted receptacle 1502

Product infoPanel mounted receptacle 1502 PDF, 162 KB
Manufacturer‘s declarationPanel mounted receptacle 1502 PDF, 37 KB
CAD data STPPanel mounted receptacle 1502 ZIP, 1 MB
CAD data 3D DWGPanel mounted receptacle 1502 ZIP, 3 MB
Mounting instructionsPanel mounted receptacle 1502 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 1502 PNG, 99 KB
Dimensional drawing landscape formatPanel mounted receptacle 1502 PNG, 100 KB

Directives

Panel mounted receptacle 1502

REACh
RoHS
