Show all Panel mounted receptacles
/
Show all Panel mounted receptacle

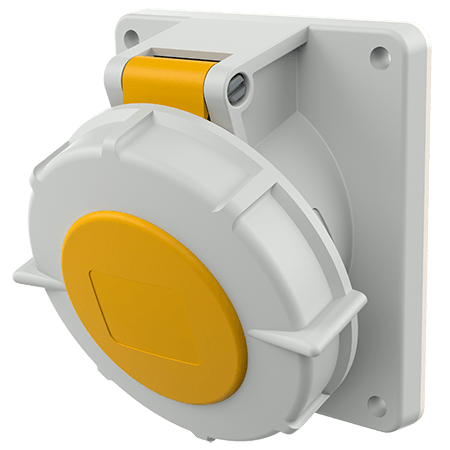

Panel mounted receptacle 1501
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
500 V
Clock position
4 h
6 h
7 h
9 h
screw terminals
20° inclination
receptacles optional fitted with auxiliary contact
Part no.
1501
EAN
4015394011668
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted receptacle 1501
Ampere
32 A
Poles
3 p
Voltage
110 V
Clock position
4 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP67
Flange
100x92 mm
Fixing hole
85x77 mm
Inclination
20 °
Weight
281 g
Certifications
EAC
Datasheets & Downloads
Panel mounted receptacle 1501
Product info
Panel mounted receptacle 1501
PDF, 154 KB
Manufacturer‘s declaration
Panel mounted receptacle 1501
PDF, 54 KB
Mounting instructions
Panel mounted receptacle 1501
PDF, 128 KB
Dimensional drawing portrait
Panel mounted receptacle 1501
PNG, 99 KB
Dimensional drawing landscape format
Panel mounted receptacle 1501
PNG, 100 KB
Directives
Panel mounted receptacle 1501
REACh
RoHS
Appropriate products
Panel mounted receptacle 1501 with IP67
Plug PowerTOP Xtra R with ErgoCONTACT
Part no. 13649
Protection type: IP67 / IP69
Ampere: 32 A
Poles: 3 p
Voltage: 110 V
Connection technology: Screw terminals, ErgoCONTACT
more
