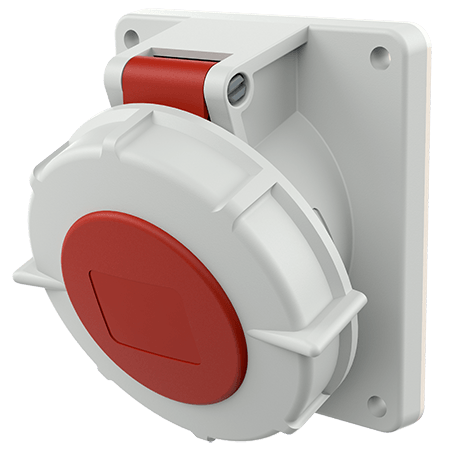

MENNEKES Panel mounted receptacle 1479

Panel mounted receptacle 1479

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • Part no.1479
  • EAN4015394011378
  • Std. Pack. 10

Technical specifications

Panel mounted receptacle 1479

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 203 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle 1479

Product infoPanel mounted receptacle 1479 PDF, 157 KB
Manufacturer‘s declarationPanel mounted receptacle 1479 PDF, 37 KB
CAD data STPPanel mounted receptacle 1479 ZIP, 1 MB
CAD data 3D DWGPanel mounted receptacle 1479 ZIP, 2 MB
Mounting instructionsPanel mounted receptacle 1479 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 1479 PNG, 99 KB
Dimensional drawing landscape formatPanel mounted receptacle 1479 PNG, 100 KB

Directives

Panel mounted receptacle 1479

REACh
RoHS
