Show all Panel mounted receptacles
/
Show all Panel mounted receptacle

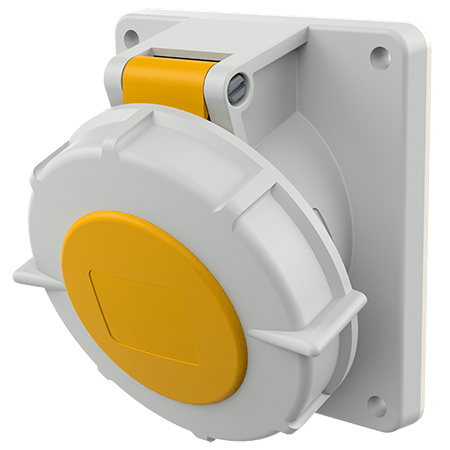

Panel mounted receptacle 1477
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
500 V
Clock position
4 h
6 h
7 h
9 h
screw terminals
20° inclination
Part no.
1477
EAN
4015394011354
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted receptacle 1477
Ampere
16 A
Poles
4 p
Voltage
110 V
Clock position
4 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP67
Flange
100x92 mm
Fixing hole
85x77 mm
Inclination
20 °
Weight
203 g
Datasheets & Downloads
Panel mounted receptacle 1477
Product info
Panel mounted receptacle 1477
PDF, 154 KB
Mounting instructions
Panel mounted receptacle 1477
PDF, 128 KB
Dimensional drawing portrait
Panel mounted receptacle 1477
PNG, 99 KB
Dimensional drawing landscape format
Panel mounted receptacle 1477
PNG, 100 KB
Directives
Panel mounted receptacle 1477
REACh
RoHS
