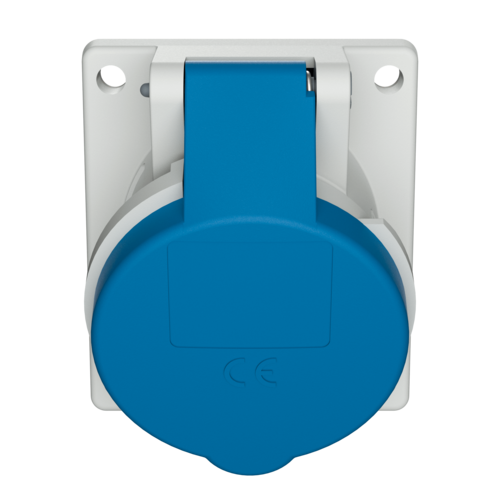

MENNEKES Panel mounted receptacle 1463

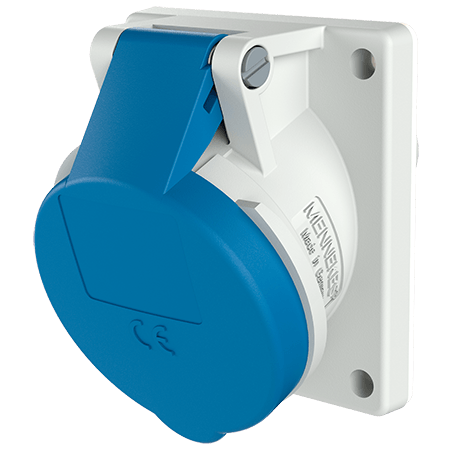

MENNEKES Panel mounted receptacle 1463 images3d

Panel mounted receptacle 1463

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • Part no.1463
  • EAN4015394011187
  • Std. Pack. 10

Technical specifications

Panel mounted receptacle 1463

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 73.5x64 mm
Fixing hole 60x52 mm
Inclination 20 °
Weight 137 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle 1463

Product infoPanel mounted receptacle 1463 PDF, 127 KB
Manufacturer‘s declarationPanel mounted receptacle 1463 PDF, 37 KB
CAD data STPPanel mounted receptacle 1463 ZIP, 1 MB
CAD data 3D DWGPanel mounted receptacle 1463 ZIP, 2 MB
Mounting instructionsPanel mounted receptacle 1463 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 1463 PNG, 49 KB
Dimensional drawing landscape formatPanel mounted receptacle 1463 PNG, 49 KB

Directives

Panel mounted receptacle 1463

REACh
RoHS
