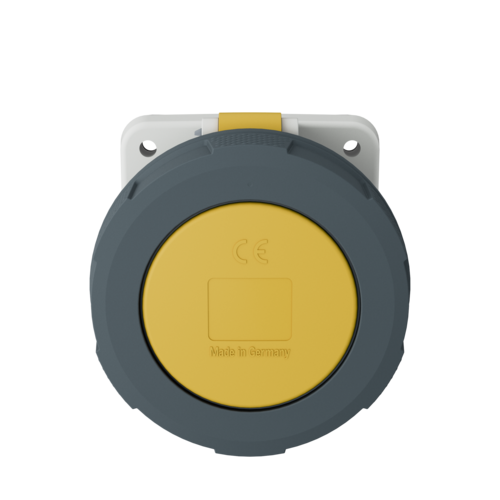

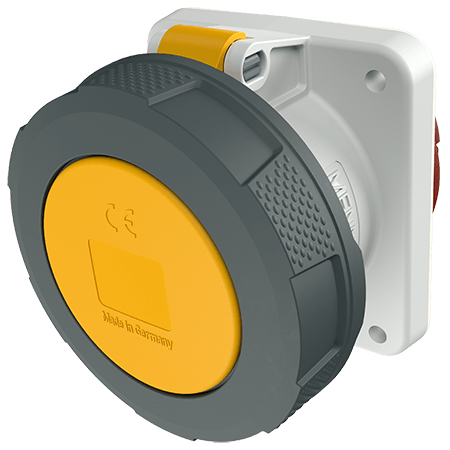

MENNEKES Panel mounted receptacle 1263A
MENNEKES Panel mounted receptacle 1263A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted receptacle 1263A

Ampere 63 A 125 A
  • rubberised bayonet ring
  • products with pilot contact: part no. + index P
  • Part no.1263A
  • EAN4015394008989
  • Std. Pack. 5
Standard screw terminals

Screw terminals

Standard screw terminals

Read more

Technical specifications

Panel mounted receptacle 1263A

Ampere 63 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 107x100 mm
Fixing hole 85x77 mm
Weight 567 g
Certifications EAC
CQC

Datasheets & Downloads

Panel mounted receptacle 1263A

Product infoPanel mounted receptacle 1263A PDF, 147 KB
Dimensional drawing portraitPanel mounted receptacle 1263A PNG, 94 KB
Dimensional drawing landscape formatPanel mounted receptacle 1263A PNG, 94 KB

Videos

Panel mounted receptacle 1263A

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Panel mounted receptacle 1263A

REACh
RoHS
