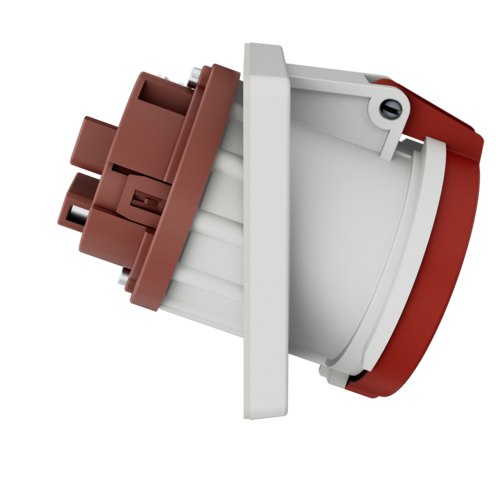

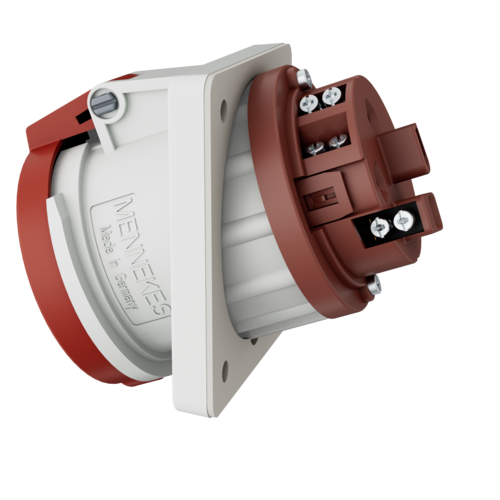

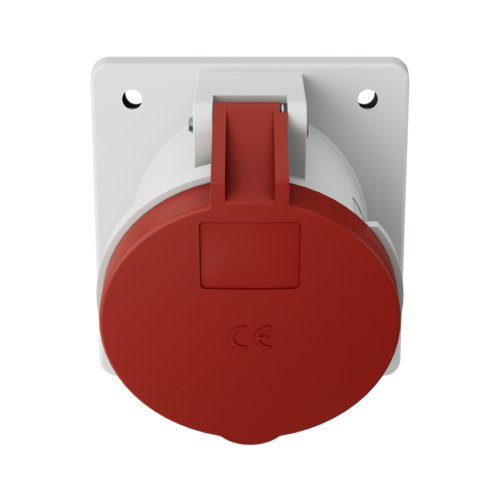

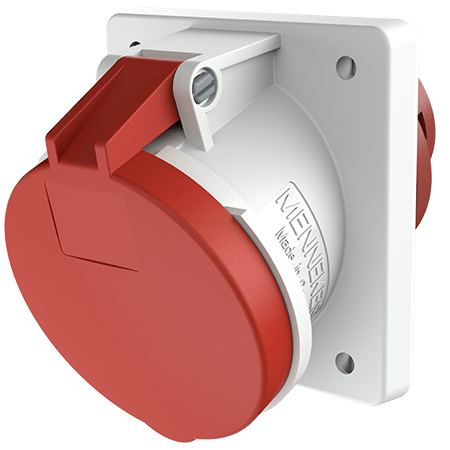

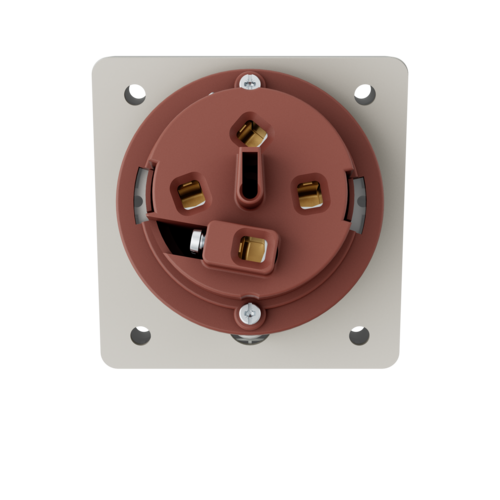

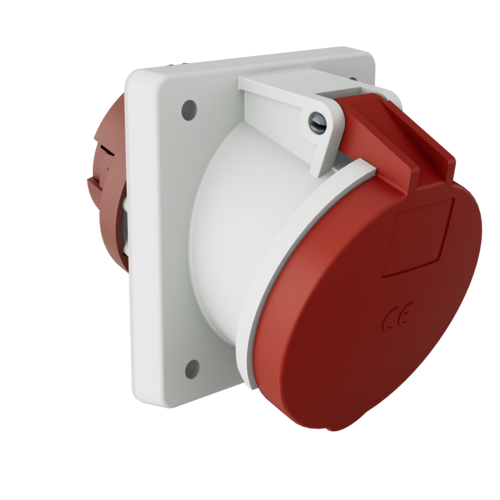

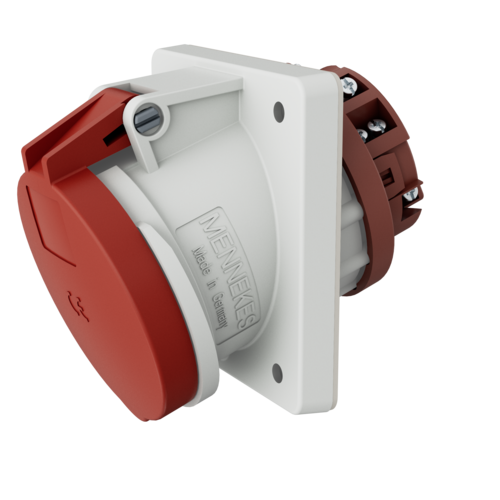

Panel mounted receptacle 1151A
Ampere
63 A
- screw terminals
- X-CONTACT
- highly heat resistant contact carrier
- 20° inclination
- products with pilot contact on request
Technical specifications
Panel mounted receptacle 1151A
| Ampere | 63 A |
|---|---|
| Poles | 4 p |
| Voltage | 400 V |
| Clock position | 6 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact |
highly heat resistant contact carrier X-CONTACT |
| Protection type | IP44 |
| Flange | 110x106 mm |
| Fixing hole | 85x77 mm |
| Inclination | 20 ° |
| Weight | 569 g |
| Certifications |
CQC VDE CB Zertifikat |
