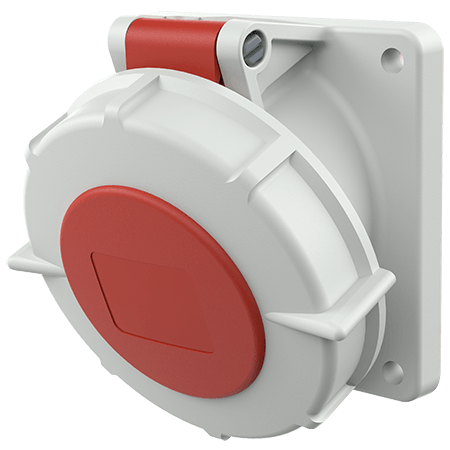

MENNEKES Panel mounted receptacle 1081

Panel mounted receptacle 1081

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • standard flange dimensions
  • 20° inclination
  • receptacles optional fitted with auxiliary contact
  • Part no.1081
  • EAN4015394202998
  • Std. Pack. 10

Technical specifications

Panel mounted receptacle 1081

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 20 °
Weight 180 g
Certifications EAC

Datasheets & Downloads

Panel mounted receptacle 1081

Product infoPanel mounted receptacle 1081 PDF, 159 KB
CAD data STPPanel mounted receptacle 1081 ZIP, 1 MB
CAD data 3D DWGPanel mounted receptacle 1081 ZIP, 3 MB
Mounting instructionsPanel mounted receptacle 1081 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 1081 PNG, 100 KB
Dimensional drawing landscape formatPanel mounted receptacle 1081 PNG, 100 KB

Directives

Panel mounted receptacle 1081

REACh
RoHS

Appropriate accessories

Panel mounted receptacle 1081

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for various wall mounted und panel mounted receptacles 16A and 32A
