Show all Inlets
/
Show all Panel mounted inlet

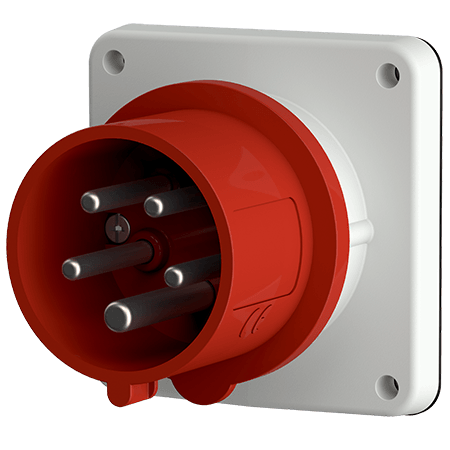

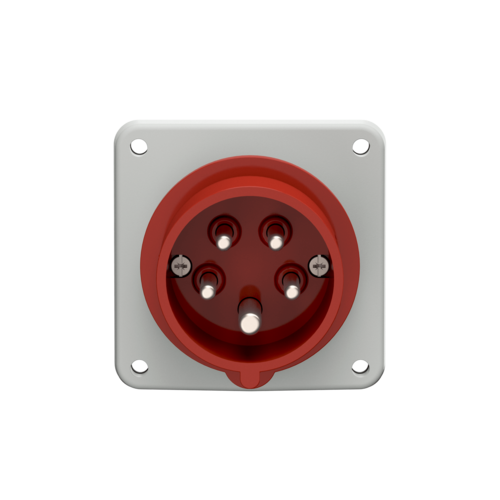

Panel mounted inlet 815
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
230 V
400 V
500 V
Clock position
6 h
7 h
9 h
screw terminals
nickel-plated contacts
a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
Part no.
815
EAN
4015394116745
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted inlet 815
Ampere
16 A
Poles
5 p
Voltage
400 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
nickel plated contacts
Protection type
IP44
Weight
172 g
Certifications
VDE (ÜG)
CQC
Datasheets & Downloads
Panel mounted inlet 815
Product info
Panel mounted inlet 815
PDF, 165 KB
Manufacturer‘s declaration
Panel mounted inlet 815
PDF, 37 KB
CAD data STP
Panel mounted inlet 815
ZIP, 295 KB
CAD data 3D DWG
Panel mounted inlet 815
ZIP, 1 MB
Dimensional drawing portrait
Panel mounted inlet 815
PNG, 97 KB
Dimensional drawing landscape format
Panel mounted inlet 815
PNG, 98 KB
Directives
Panel mounted inlet 815
REACh
RoHS
