MENNEKES Connector PowerTOP Xtra R with ErgoCONTACT 14605

Please accept marketing-cookies to watch this video.

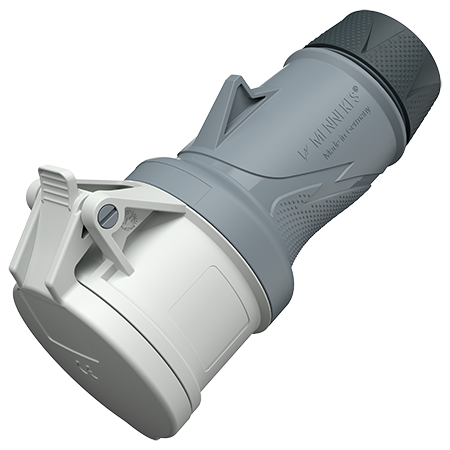

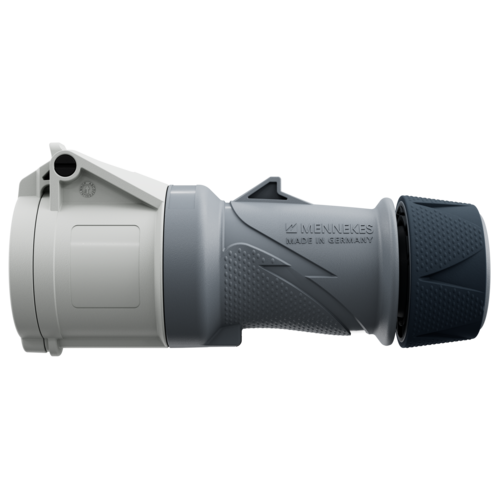

Connector PowerTOP Xtra R with ErgoCONTACT 14605

Name: Connector PowerTOP Xtra R with ErgoCONTACT
Brand: MENNEKES
SKU: 14605

All versions of the PowerTOP Xtra connector deliver excellent results thanks to their ergonomic design, easy to install, safe and easy connection, and X-CONTACT inside. The innovative contact sleeves ensure easy insertion and withdrawal. The PowerTOP Xtra connector has IP 54 protection class and is therefore impervious to both water spray and dust.

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw connection technology ErgoCONTACT
X-CONTACT
highly heat resistant contact carrier
nickel plated contacts
ergonomic enclosure design with nubbed grip zones

rubberised cable gland with sealing
strain relief and protection against kinking
thread lock and safety slide
area for self-adhesive labels

Part no.14605
EAN4015394304098
Std. Pack. 10 Qty.

ErgoCONTACT®

Screw connection technology

Technical specifications

Connector PowerTOP Xtra R with ErgoCONTACT 14605

Ampere	32 A
Poles	4 p
Voltage	50-500 V
Clock position	1 h
Connection technology	Screw terminals, ErgoCONTACT
Contact	nickel plated contacts highly heat resistant contact carrier
Protection type	IP54
Weight	385 g
Certifications	VDE CB Zertifikat
