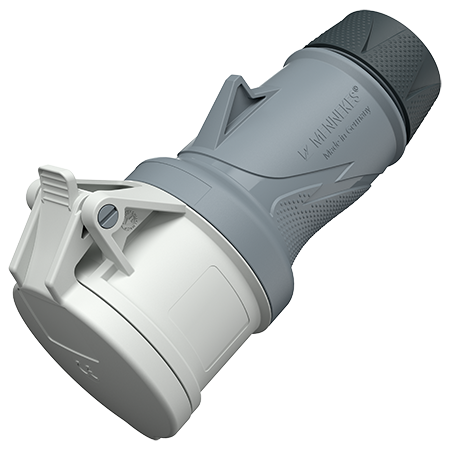

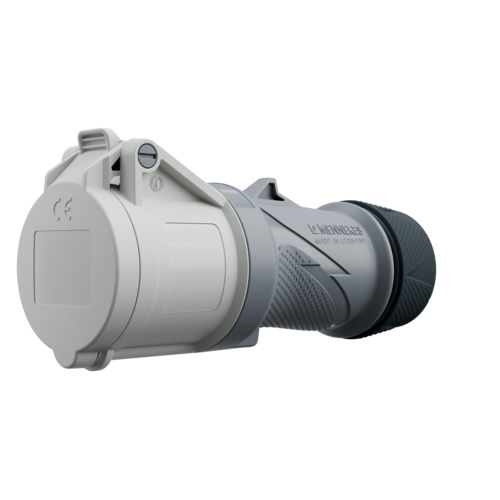

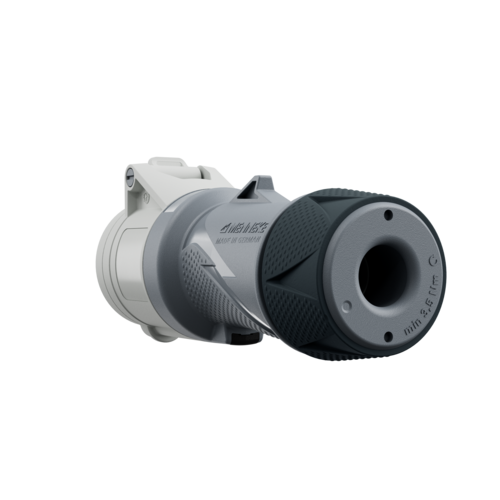

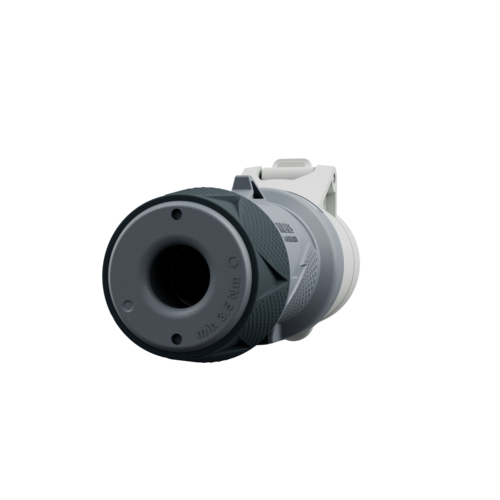

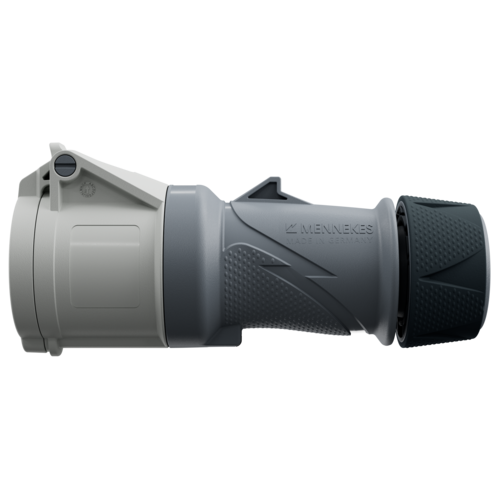

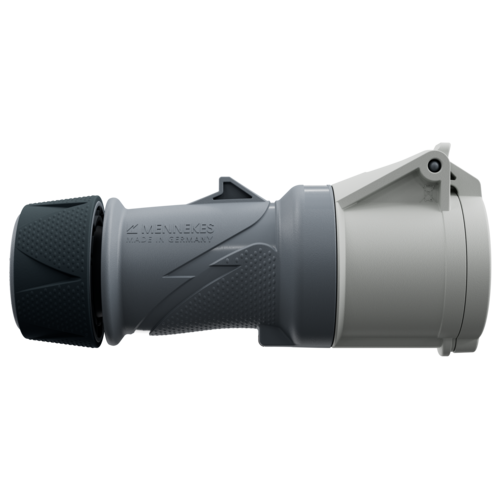

MENNEKES Connector PowerTOP Xtra R with ErgoCONTACT 14588

Connector PowerTOP Xtra R with ErgoCONTACT 14588

All versions of the PowerTOP Xtra connector deliver excellent results thanks to their ergonomic design, easy to install, safe and easy connection, and X-CONTACT inside. The innovative contact sleeves...Read more
  • screw connection technology ErgoCONTACT
  • X-CONTACT
  • highly heat resistant contact carrier
  • nickel plated contacts
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.14588
  • EAN4015394306184
  • Std. Pack. 10 Qty.
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Technical specifications

Connector PowerTOP Xtra R with ErgoCONTACT 14588

Ampere 16 A
Poles 3 p
Voltage 50-500 V
Clock position 1 h
Connection technology Screw terminals, ErgoCONTACT
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP54
Weight 200 g
Certifications VDE
CB Zertifikat

Videos

Connector PowerTOP Xtra R with ErgoCONTACT 14588

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Connector PowerTOP Xtra R with ErgoCONTACT 14588

Appropriate products

Connector PowerTOP Xtra R with ErgoCONTACT 14588 with IP54

MENNEKES Plug PowerTOP Xtra R with ErgoCONTACT 13588

Plug PowerTOP Xtra R with ErgoCONTACT

Part no. 13588

  • Protection type: IP54
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 50-500 V
  • Connection technology: Screw terminals, ErgoCONTACT

Appropriate accessories

Connector PowerTOP Xtra R with ErgoCONTACT 14588

MENNEKES Set cable gland PowerTOP Xtra G 42940

Set cable gland PowerTOP Xtra G

Part no. 42940

rubberised cable gland, with protective grommet to prevent dirt from accumulating, suitable for PowerTOP Xtra plugs and connetcor in 16 A
