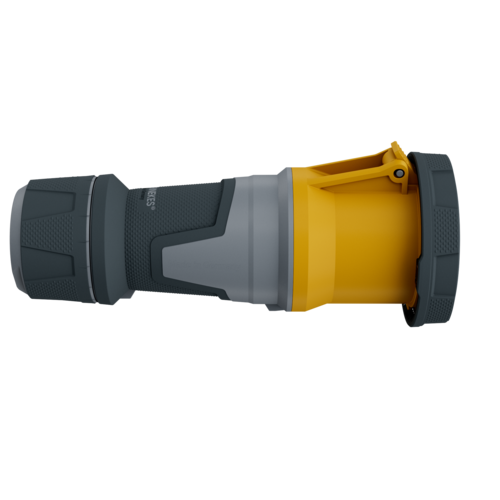

MENNEKES Connector PowerTOP Xtra 14223

MENNEKES Connector PowerTOP Xtra 14223 images3d

Please accept marketing-cookies to watch this video.

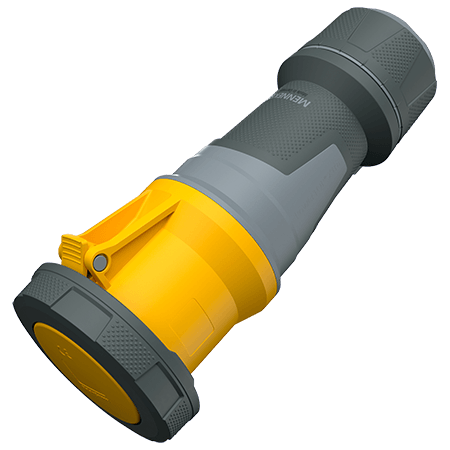

Connector PowerTOP Xtra 14223

Ampere 63 A 125 A

Poles

Voltage

Clock position

screw terminals
with rubberised grip area
frame terminals
X-CONTACT
highly heat resistant contact carrier

cable gland and sealing
strain relief and protection against kinking
enclosure with thread lock
two safety slides

Part no.14223
EAN4015394241027
Std. Pack. 5

Standard screw terminals

Screw terminals

Standard screw terminals

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Connector PowerTOP Xtra 14223

Ampere	125 A
Poles	5 p
Voltage	110 V
Clock position	4 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	highly heat resistant contact carrier X-CONTACT
Protection type	IP67
Weight	1514 g
Certifications	VDE CB Zertifikat

Dimensional drawing landscape format

Datasheets & Downloads

Connector PowerTOP Xtra 14223

Product infoConnector PowerTOP Xtra 14223 PDF, 84 KB

Mounting instructionsConnector PowerTOP Xtra 14223 PDF, 1 MB

Dimensional drawing portraitConnector PowerTOP Xtra 14223 PNG, 39 KB

Dimensional drawing landscape formatConnector PowerTOP Xtra 14223 PNG, 39 KB

Videos

Connector PowerTOP Xtra 14223

Please accept marketing-cookies to watch this video.

Please accept marketing-cookies to watch this video.

Directives

Connector PowerTOP Xtra 14223
