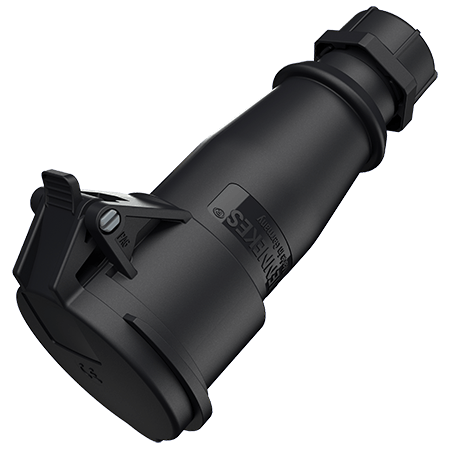

MENNEKES Connector AM-TOP 514SW

Connector AM-TOP 514SW

Ampere 16 A 32 A

Poles

Voltage

Clock position

single part body
with highly heat resistant contact carrier

cable gland and sealing

Part no.514SW
EAN4015394256953
Std. Pack. 10 Qty.

Technical specifications

Connector AM-TOP 514SW

Ampere	16 A
Poles	4 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP44
Weight	202 g

Dimensional drawing landscape format

Datasheets & Downloads

Connector AM-TOP 514SW

Product infoConnector AM-TOP 514SW PDF, 157 KB

Mounting instructionsConnector AM-TOP 514SW PDF, 2 MB

Dimensional drawing portraitConnector AM-TOP 514SW PNG, 76 KB

Dimensional drawing landscape formatConnector AM-TOP 514SW PNG, 77 KB
