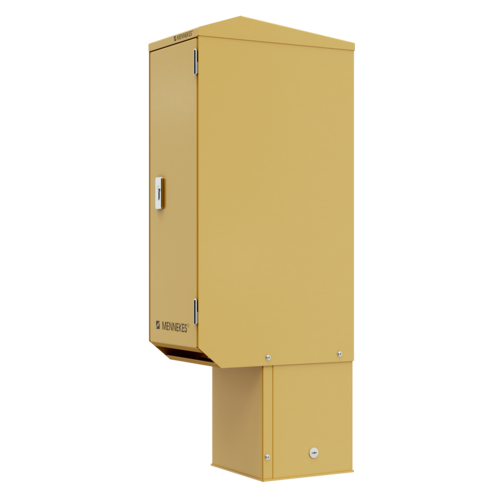

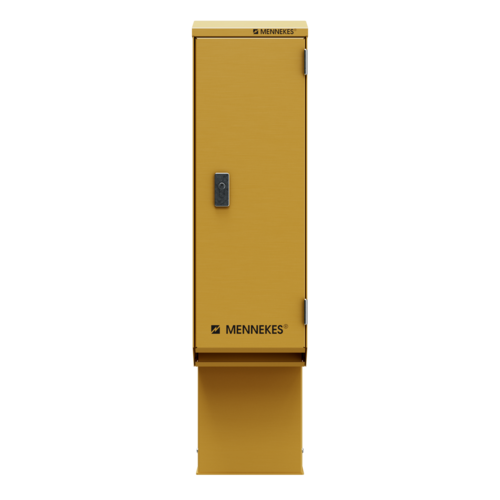

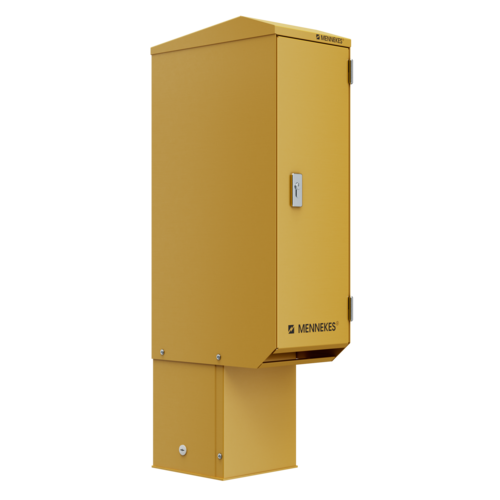

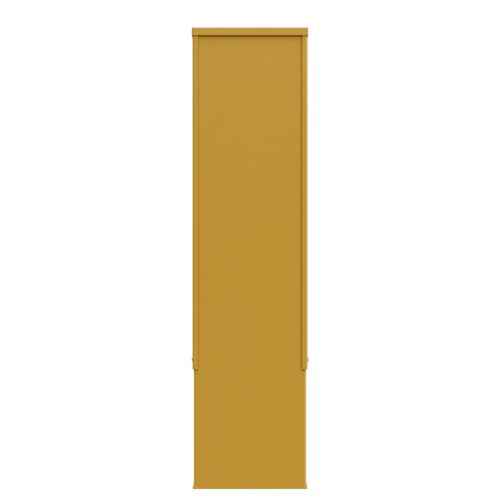

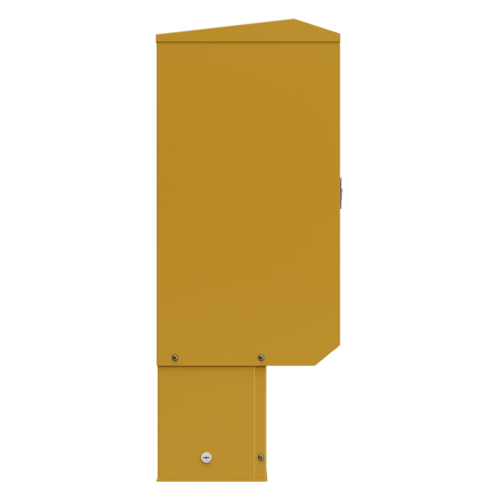

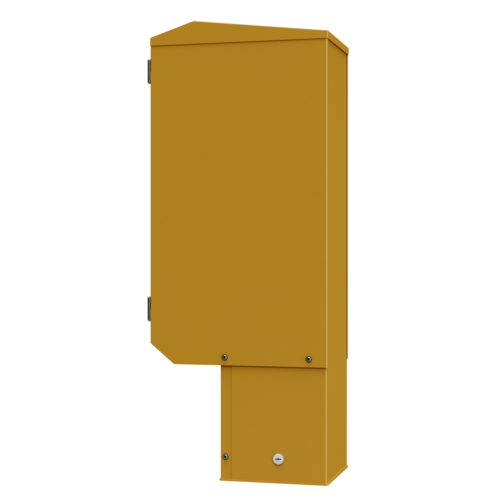

CombiTOWER 15741

with lockable door
stainless steel with removable cover and front plate
dimensions (H x W x D): 1043 x 254 x 415 mm

for AMAXX® enclosures with 5 segments
painted signal yellow (RAL 1003)

Part no.15741
EAN4015394239079
Std. Pack. 1

Technical specifications

CombiTOWER 15741

Datasheets & Downloads

CombiTOWER 15741

Product infoCombiTOWER 15741 PDF, 75 KB

CAD data STPCombiTOWER 15741 ZIP, 2 MB

CAD data 3D DWGCombiTOWER 15741 ZIP, 2 MB

Dimensional drawing portraitCombiTOWER 15741 PNG, 16 KB

Dimensional drawing landscape formatCombiTOWER 15741 PNG, 17 KB

Directives

CombiTOWER 15741

REACh

RoHS

Appropriate products

CombiTOWER 15741

AMAXX receptacle combination

Part no. 950005

Enclosure material: Plastic
Protection type: IP44
CEE 32 A, 5 p, 400 V: 1
CEE 16 A, 5 p, 400 V: 1
CEE 16 A, 3 p, 230 V: 1
SCHUKO® 16 A, 230 V: 3

AMAXX receptacle combination

Part no. 950003

Enclosure material: Plastic
Protection type: IP44
CEE 16 A, 5 p, 400 V: 3
SCHUKO® 16 A, 230 V: 4

AMAXX receptacle combination

Part no. 950004

Enclosure material: Plastic
Protection type: IP44
CEE 32 A, 5 p, 400 V: 1
CEE 16 A, 5 p, 400 V: 1
SCHUKO® 16 A, 230 V: 6

AMAXX receptacle combination

Part no. 950009

Enclosure material: Plastic
Protection type: IP44
CEE 32 A, 5 p, 400 V: 2
CEE 16 A, 5 p, 400 V: 1
SCHUKO® 16 A, 230 V: 4

AMAXX receptacle combination

Part no. 950013

Enclosure material: Plastic
Protection type: IP44
CEE 63 A, 5 p, 400 V: 1
CEE 32 A, 5 p, 400 V: 1
CEE 16 A, 5 p, 400 V: 1
SCHUKO® 16 A, 230 V: 4

AMAXX receptacle combination

Part no. 950030

Enclosure material: Plastic
Protection type: IP67
CEE 32 A, 5 p, 400 V: 1
CEE 16 A, 5 p, 400 V: 2
SCHUKO® 16 A, 230 V: 3

AMAXX receptacle combination

Part no. 950010

Enclosure material: Plastic
Protection type: IP44
CEE 32 A, 5 p, 400 V: 2
CEE 16 A, 5 p, 400 V: 2
SCHUKO® 16 A, 230 V: 3

AMAXX receptacle combination

Part no. 950031

Enclosure material: Plastic
Protection type: IP67
CEE 63 A, 5 p, 400 V: 1
CEE 32 A, 5 p, 400 V: 1
CEE 16 A, 5 p, 400 V: 1
SCHUKO® 16 A, 230 V: 2

AMAXX receptacle combination

Part no. 950040

Enclosure material: Plastic, high resistance to chemicals / AMELAN
Protection type: IP44
CEE 32 A, 5 p, 400 V: 1
CEE 16 A, 5 p, 400 V: 2
SCHUKO® 16 A, 230 V: 4

AMAXX receptacle combination

Part no. 950041

Enclosure material: Plastic, high resistance to chemicals / AMELAN
Protection type: IP44
CEE 63 A, 5 p, 400 V: 1
CEE 32 A, 5 p, 400 V: 1
CEE 16 A, 5 p, 400 V: 1
SCHUKO® 16 A, 230 V: 4

AMAXX receptacle combination

Part no. 950007

Enclosure material: Plastic
Protection type: IP44
CEE 32 A, 5 p, 400 V: 1
CEE 16 A, 5 p, 400 V: 2
SCHUKO® 16 A, 230 V: 4
