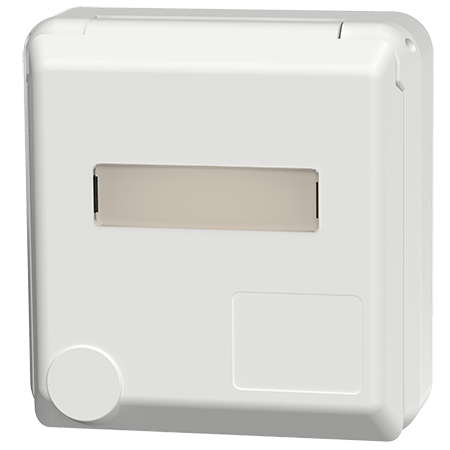

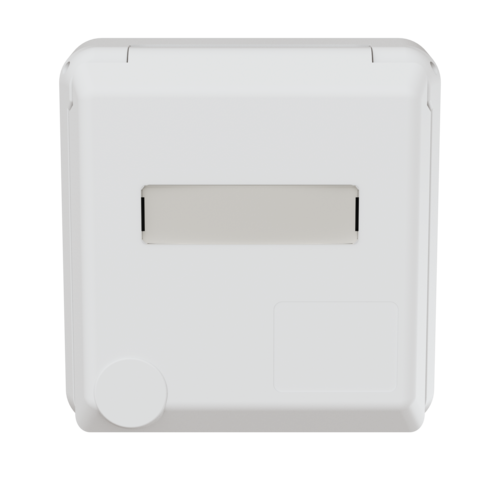

Cepex panel mounted receptacle SCHUKO® 4980

Name: Cepex panel mounted receptacle SCHUKO®
Brand: MENNEKES
SKU: 4980

Ampere 16 A

Poles

Voltage

alpine white or pearl white
screw terminals

with labelling field
suitable for installation in cable ducts and columns

Part no.4980
EAN4015394023197
Std. Pack. 5

Technical specifications

Cepex panel mounted receptacle SCHUKO® 4980

Ampere	16 A
Poles	2 p+PE
Voltage	230 V
Hertz	50-60 Hz
Protection type	IP44
Shutter	No
Weight	139 g
Certifications	EAC

Datasheets & Downloads

Cepex panel mounted receptacle SCHUKO® 4980

Product infoCepex panel mounted receptacle SCHUKO® 4980 PDF, 142 KB

Dimensional drawing portraitCepex panel mounted receptacle SCHUKO® 4980 PNG, 60 KB

Dimensional drawing landscape formatCepex panel mounted receptacle SCHUKO® 4980 PNG, 60 KB

Directives

Cepex panel mounted receptacle SCHUKO® 4980

REACh

RoHS

Appropriate accessories

Cepex panel mounted receptacle SCHUKO® 4980

Spacer frame

Part no. 4239

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

Cepex masking frame

Part no. 41424

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles

Cepex masking frames

Part no. 41423

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles
