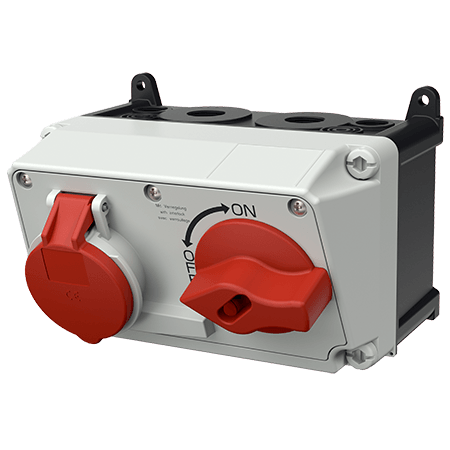

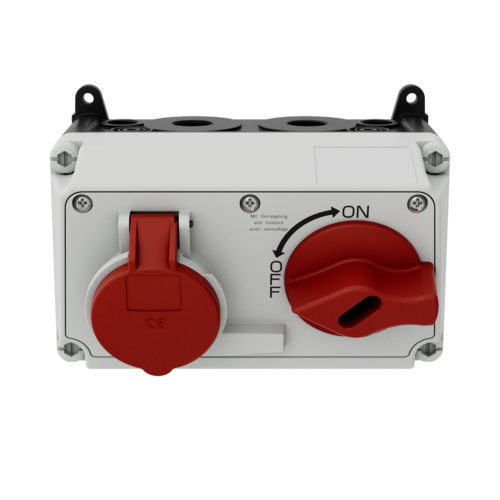

Wall mounted receptacle 7605

Poles
Voltage
Clock position
  • screw terminals
  • for horizontal installation
  • switched
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.7605
  • EAN4015394231585
  • Std. Pack. 1 Qty.

Technical specifications

Wall mounted receptacle 7605

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Enclosure material Plastic
Weight 1308 g
