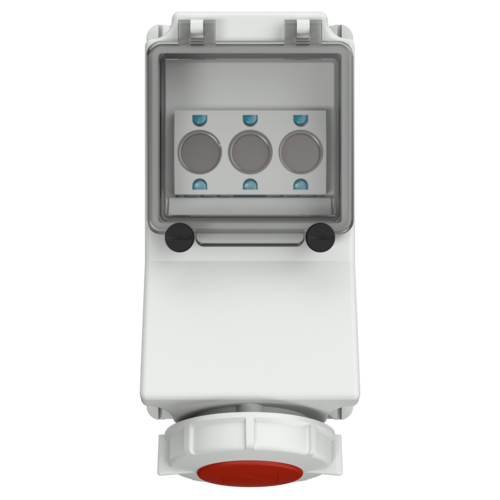

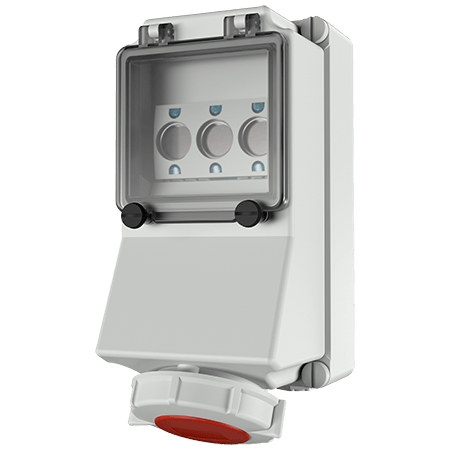

Wall mounted receptacle 7134

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • fused with fuse socket D 01 or D 02
  • Part no.7134
  • EAN4015394100669
  • Std. Pack. 1 Qty.

Technical specifications

Wall mounted receptacle 7134

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Enclosure material Plastic
Weight 1279 g
Declaration of Conformity CQC

Datasheets & Downloads

Wall mounted receptacle 7134

Product info Wall mounted receptacle 7134 PDF, 176 KB
CAD data STP Wall mounted receptacle 7134 ZIP, 1 MB
CAD data 3D DWG Wall mounted receptacle 7134 ZIP, 3 MB
Dimensional drawing portrait Wall mounted receptacle 7134 PNG, 120 KB
Dimensional drawing landscape format Wall mounted receptacle 7134 PNG, 121 KB
