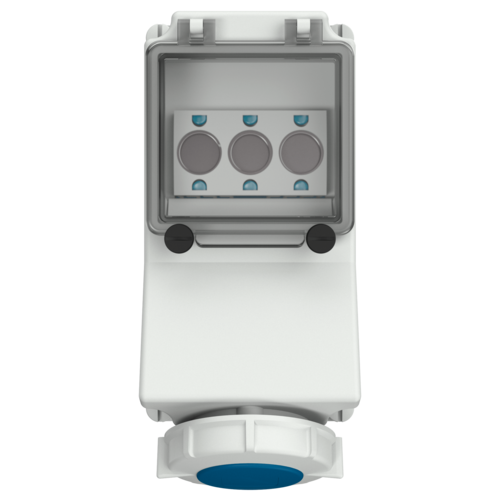

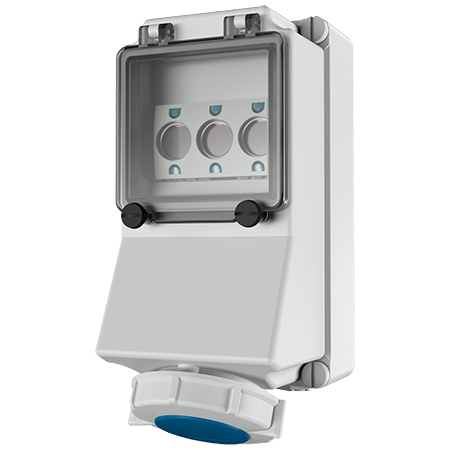

Wall mounted receptacle 7084

Poles
Voltage
Clock position
  • screw terminals
  • fused with fuse socket D 01 or D 02
  • Part no.7084
  • EAN4015394033288
  • Std. Pack. 1 Qty.

Technical specifications

Wall mounted receptacle 7084

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Enclosure material Plastic
Weight 1010 g
Declaration of Conformity CN,CQC

Datasheets & Downloads

Wall mounted receptacle 7084
