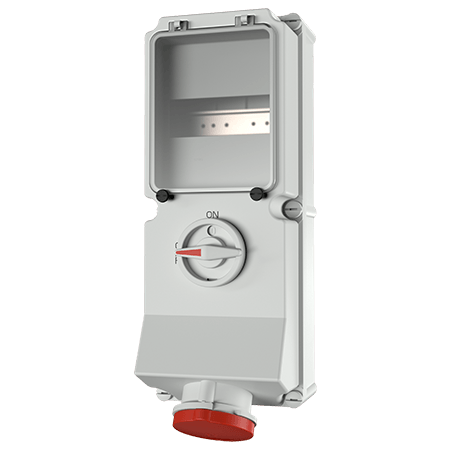

Wall mounted receptacle 6062A

Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT
  • switched
  • mechanical DUO-interlock
  • DIN rail
  • receptacles can be padlocked
  • Part no.6062A
  • EAN4015394031154
  • Std. Pack. 1 Qty.

Technical specifications

Wall mounted receptacle 6062A

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP 44
Enclosure material Plastic
Weight 4050 g

Datasheets & Downloads

Wall mounted receptacle 6062A
