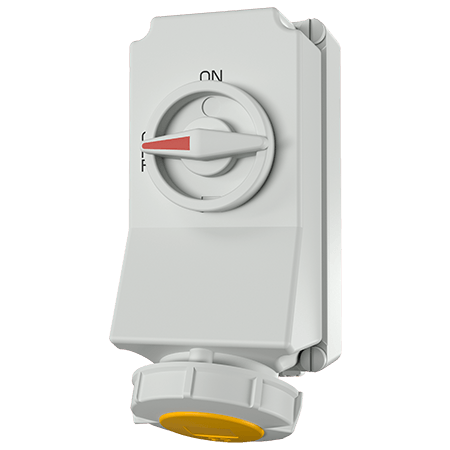

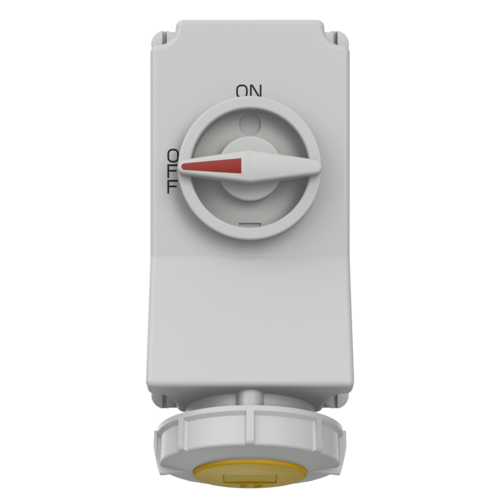

Wall mounted receptacle 5924A

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
switched

mechanical DUO-interlock
receptacles can be padlocked

Part no.5924A
EAN4015394030386
Std. Pack. 1 Qty.

Technical specifications

Wall mounted receptacle 5924A

Ampere	32 A
Poles	3 p
Voltage	110 V
Clock position	4 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP 67
Enclosure material	Plastic
Weight	1165 g
Declaration of Conformity	EAC CQC

Dimensional drawing landscape format

Datasheets & Downloads

Wall mounted receptacle 5924A

Product info Wall mounted receptacle 5924A PDF, 175 KB

Dimensional drawing portrait Wall mounted receptacle 5924A PNG, 120 KB

Dimensional drawing landscape format Wall mounted receptacle 5924A PNG, 121 KB
