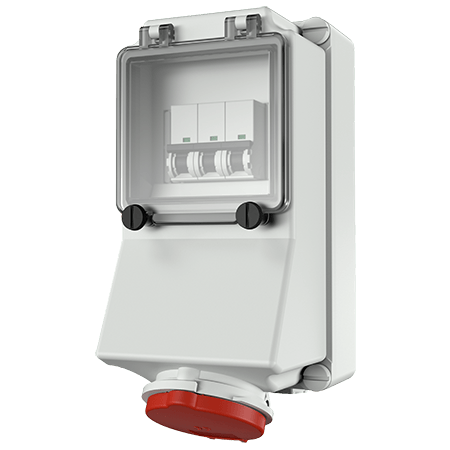

Wall mounted receptacle 5010

Poles
Voltage
Clock position
  • screw terminals
  • fused with circuit-breaker, K-characteristics
  • Part no.5010
  • EAN4015394023302
  • Std. Pack. 1 Qty.

Technical specifications

Wall mounted receptacle 5010

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Enclosure material Plastic
Weight 1100 g
Declaration of Conformity CN,CQC

Datasheets & Downloads

Wall mounted receptacle 5010
