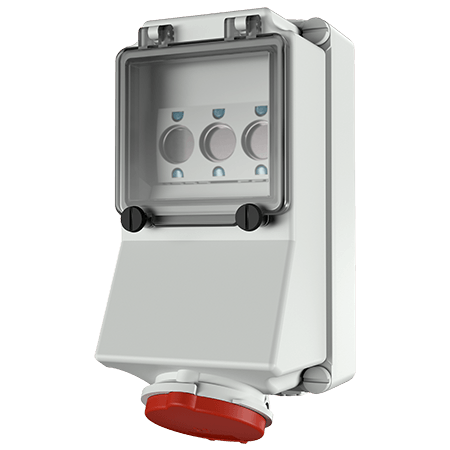

MENNEKES Wall mounted receptacle 5004
MENNEKES Wall mounted receptacle 5004 images3d

Wall mounted receptacle 5004

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • fused with fuse socket D 01 or D 02
  • Part no.5004
  • EAN4015394023258
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 5004

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Enclosure material Plastic
Weight 1030 g

Datasheets & Downloads

Wall mounted receptacle 5004

Product infoWall mounted receptacle 5004 PDF, 177 KB
Manufacturer‘s declarationWall mounted receptacle 5004 PDF, 43 KB
CAD data STPWall mounted receptacle 5004 ZIP, 876 KB
CAD data 3D DWGWall mounted receptacle 5004 ZIP, 2 MB
Dimensional drawing portraitWall mounted receptacle 5004 PNG, 124 KB
Dimensional drawing landscape formatWall mounted receptacle 5004 PNG, 125 KB
