MENNEKES

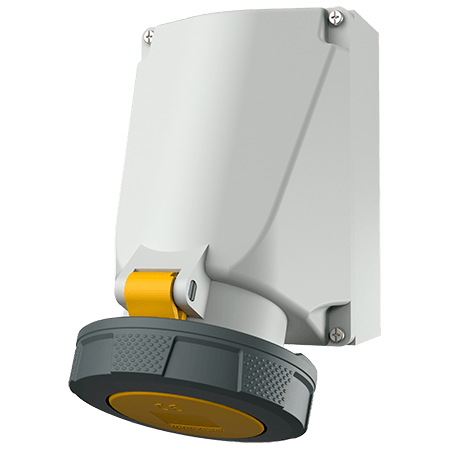

Wall mounted receptacle 130A

Ampere 63 A
Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT
  • internal fixing
  • enclosure base can be turned 180°
  • with 6 fixing points to accommodate special terminals
  • products with pilot contact on request
  • Part no.130A
  • EAN4015394000556
  • Std. Pack. 5 Qty.

Technical specifications

Wall mounted receptacle 130A

Ampere 63 A
Poles 4 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP 67
Enclosure material Plastic
Weight 941 g
Declaration of Conformity DE,VDE
CN,CQC

Datasheets & Downloads

Wall mounted receptacle 130A
